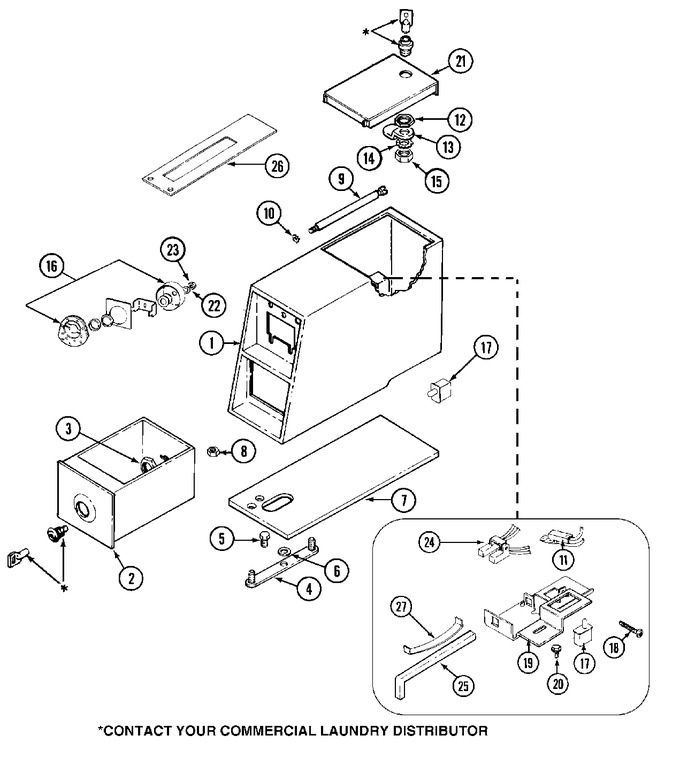

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 22001405 | Case, Coin Slide (wht) | A0 |
|
- | ||||
| 001 | 22001406 | (alm) | A0 |
|
- | ||||
| 002 | 208883 | Vault, Coin (wht) (Replaces: 207913) | A0 |
|
- | ||||
| 002 | NLA | (alm) | A0 |
|
- | ||||
| 003 | W11395752 | Nut, Lock (Replaces: 212328) | A0 |
|
$ 11.74 | ||||
| 004 | NLA | Strap, Mounting | A0 |
|
- | ||||
| 005 | WP90767 | Screw, Mounting Strap (Replaces: 211294) | A0 |
|
Immediately | $ 7.04 | |||
| 006 | 910309 | Washer, Strap Screw | A0 |
|
- | ||||
| 007 | 214660 | Gasket, Meter Case | A0 |
|
- | ||||
| 008 | WP62739 | Nut, Case Mounting (Replaces: Y052740) | A0 |
|
$ 6.85 | ||||
| 009 | 215559 | Bolt, Locking | A0 |
|
$ 5.25 | ||||
| 010 | 910387 | Lockwasher, Locking Bolt | A0 |
|
- | ||||
| 011 | 208045 | Harness, Wire (sensor Sw`s.) | A0 |
|
- | ||||
| 012 | W11395752 | Nut, Cam Lock (Replaces: 212328) | A0 |
|
$ 11.74 | ||||
| 013 | W11165684 | Cam, Lock (Replaces: 213750) | A0 |
|
$ 8.20 | ||||
| 014 | WPW10133264 | Lockwasher, Lock Cam (Replaces: 22001354) | A0 |
|
$ 125.12 | ||||
| 015 | 22001355 | Nut, Lock Cam | A0 |
|
- | ||||
| 016 | NLA | Lock Cam Assembly | A0 |
|
- | ||||
| 017 | WPW10131838 | Switch, Sensor (Replaces: 33001250) | A0 |
|
$ 21.52 | ||||
| 018 | WP3395530 | Screw, Optic Switch (Replaces: 314665) | A0 |
|
$ 6.93 | ||||
| 019 | 33001253 | Bracket, Sensor Switch | A0 |
|
- | ||||
| 020 | 211605 | Clip, Bracket Screw | A0 |
|
- | ||||
| 020 | WP90767 | Screw, Switch Bracket (Replaces: 212276) | A0 |
|
Immediately | $ 7.04 | |||
| 021 | 204216 | Door, Access (wht) | A0 |
|
- | ||||
| 021 | 204216L | (alm) | A0 |
|
- | ||||
| 022 | WPW10133264 | Lockwasher, Lock Cam (Replaces: 22001354) | A0 |
|
$ 125.12 | ||||
| 023 | 216203 | Lockwasher, Double ``d`` | A0 |
|
- | ||||
| 023 | 22001355 | Nut, Lock Cam | A0 |
|
- | ||||
| 024 | 206799 | Optic Switch Assembly (6 Wire) | A0 |
|
$ 113.64 | ||||
| 025 | 216442 | Rod, Actuator | A0 |
|
$ 44.45 | ||||
| 026 | NLA | Bracket, Optic Switch Act. | A0 |
|
- | ||||
| 027 | 33001252 | Spring, Switch Rod | A0 |
|
- |
