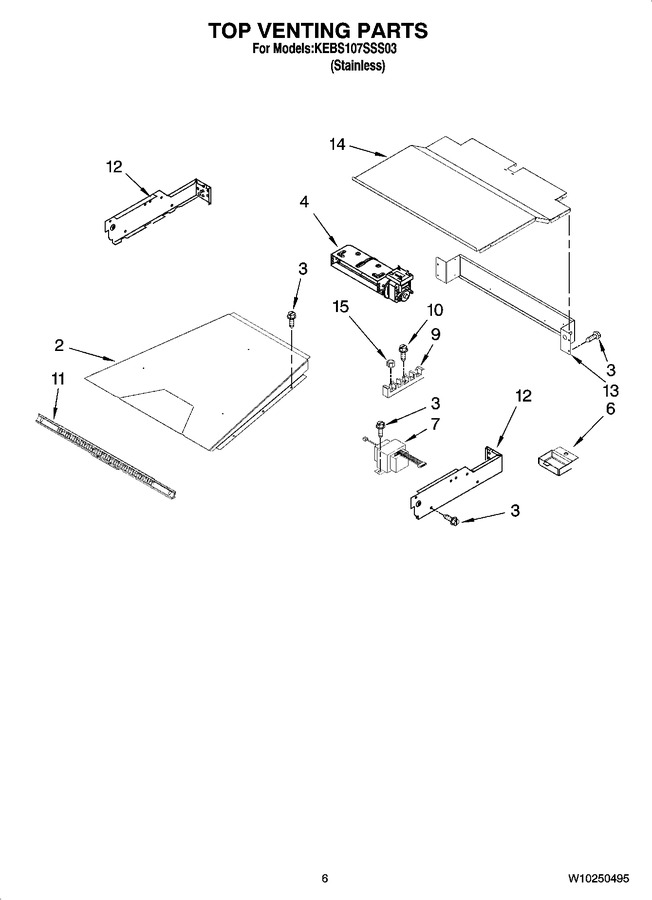

SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	8304643		Duct, Air Outlet				$ 51.64
3	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
4	WP8303972		Blower, 60mm   (Replaces: 8303972)			Immediately	$ 276.88
6	W11819303		Connector, Cover   (Replaces: 8285593)		Appelez-nous	-
7	WPW10111628		Control, Transformer   (Replaces: W10111628)				$ 254.91
9	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
10	W11684512		Screw   (Replaces: 3400080)				$ 12.69
11	8303684		Vent, Control Panel				$ 99.51
12	8304255		Side, Control Top (left)				$ 36.20
12	8303518		Side, Control Top (right)		Appelez-nous	-
13	8303520		Back, Control				$ 33.48
14	8304219		Cover, Top				$ 52.95
15	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.16
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	4450800		Screw, Ground				$ 11.55
	4452260		Spacer, Foam		Appelez-nous	-
	WP98997		Clip   (Replaces: 98997)				$ 9.98
	WP4448950		Screw, Install (4)   (Replaces: 4448950)				$ 6.80
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 23.85
	350930		Paint, Spray (white)			Immediately	$ 34.39
	261900		Paint, Spray (citrine White)				$ 51.34
	285006		Paint, Spray (black)   (Replaces: 830864)			Immediately	$ 51.34
	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
	W10231531		Harness, Door Latch   (Replaces: W10143473)				$ 128.67
	W11209404		Connector, Flex   (Replaces: W10155291)				$ 102.00
	W10171559		Harness, Goc				$ 367.23
	8304051		Harness, Main				$ 56.20
	8304438		Conduit, Single		Appelez-nous	-
	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 6.47

    View Diagram in Separate Window       Print Part List
