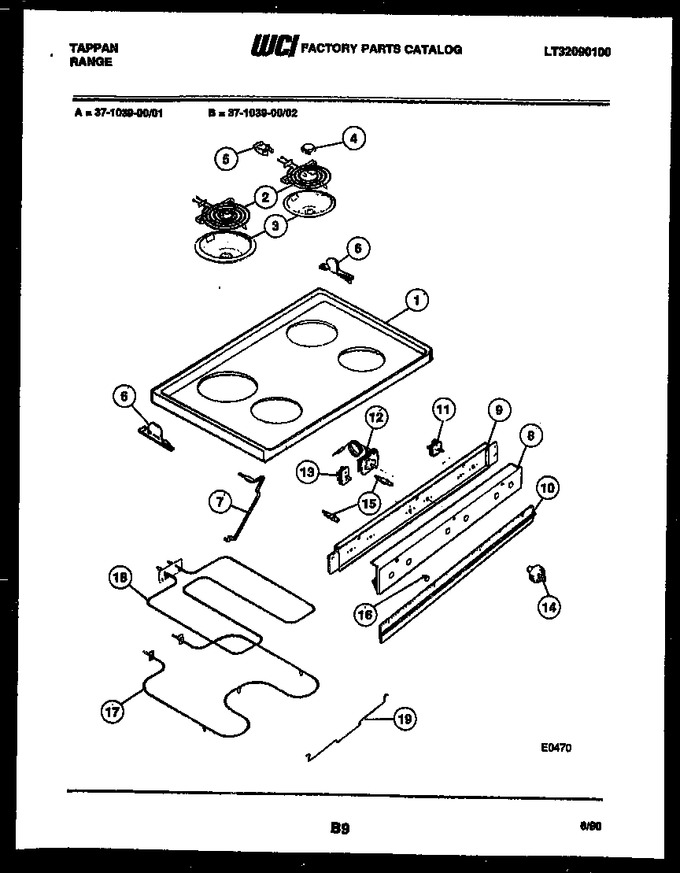

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051380 | Main - Top (almd) |
|
- | |||||
| 2 | 3202348 | Element, Top Large |
|
- | |||||
| 3 | 316048413 | Pan-element Lge (2) (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 4 | 3017801 | Medallion (4) |
|
- | |||||
| 5 | 5303935058 | Block-terminal (4) (Replaces: 5303912666) |
|
Immediately | $ 13.81 | ||||
| 6 | 08067746 | Bracket - Hg Lh |
|
- | |||||
| 7 | 3013818 | Rod - Top Sppt (2) |
|
- | |||||
| 8 | 3204683 | Panel - Manifold |
|
- | |||||
| 9 | 3051454 | Plate-instr. Mtg. |
|
- | |||||
| 10 | 3204623 | Extrusion - Ht Shield |
|
- | |||||
| 11 | 3206431 | Switch - Top Sm (3) |
|
- | |||||
| 12 | 3202785 | Thermostat |
|
- | |||||
| 13 | 3016812 | Switch-selector |
|
- | |||||
| 14 | 3204681 | Knob - Control (4) |
|
- | |||||
| 15 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 16 | 5308037703 | Jewel - Indicator (3) |
|
- | |||||
| 17 | 316075103 | Element-oven Bake (Replaces: 3203534) |
|
Immediately | $ 42.36 | ||||
| 18 | 5303051140 | Element-oven Broil |
|
$ 202.71 | |||||
| 19 | 3051373 | Support-element |
|
- | |||||
| *24842 | 3051224 | Retainer-lens (3) |
|
- | |||||
| 11A | 3206430 | Switch - Top Lge |
|
- | |||||
| 14A | 3204682 | Knob - Thermostat |
|
- | |||||
| 14B | 3204680 | Knob - Sw Selector |
|
- | |||||
| 15A | 5303091462 | Light - Ind 250 V |
|
- | |||||
| 2A | 3202347 | Element - Top (small) |
|
- | |||||
| 3A | 5303013589 | Pan-element Sm (2) |
|
- | |||||
| 6A | 08067747 | Bracket - Hg Rh |
|
- |
