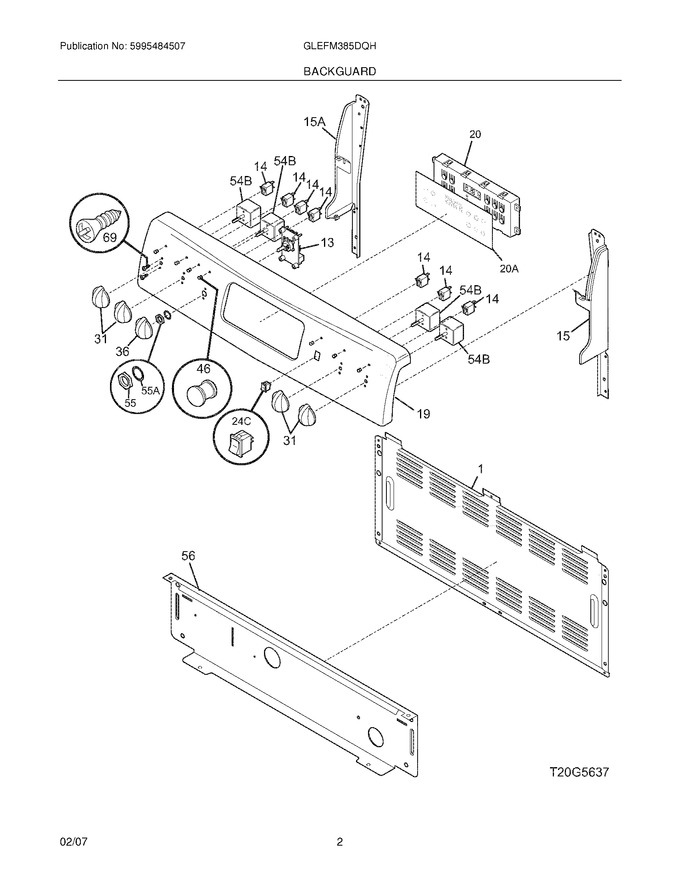

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
13	316414400		Control,bake ,mini Oven				$ 282.50
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316411407		Support,backguard ,bisque ,rh		Appelez-nous	-
19	316424147		Panel,control ,bisque		Appelez-nous	-
31	316223003		Knob,control ,bisque				$ 48.20
36	316223020		Knob,control ,bisque		Appelez-nous	-
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
55	316247700		Nut,mounting ,(2)				$ 18.20
56	316234014		Shield,backguard ,bisque ,inner		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
15A	316411406		Support,backguard ,bisque ,lh				$ 90.30
20A	316419305		Overlay,clock ,bisque ,es340		Appelez-nous	-
55A	316247800		Washer-lock,control Mtg				$ 18.20
F20	316418305		Clock/timer,electronic ,es340		Appelez-nous	-
F24C	316259802		Switch-rocker,bisque		Appelez-nous	-
F54B	316238201		Switch,infinite ,dual Element   (Replaces: 316238200)			Immediately	$ 89.00
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316416906		Harness,mini Oven Cntl		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
