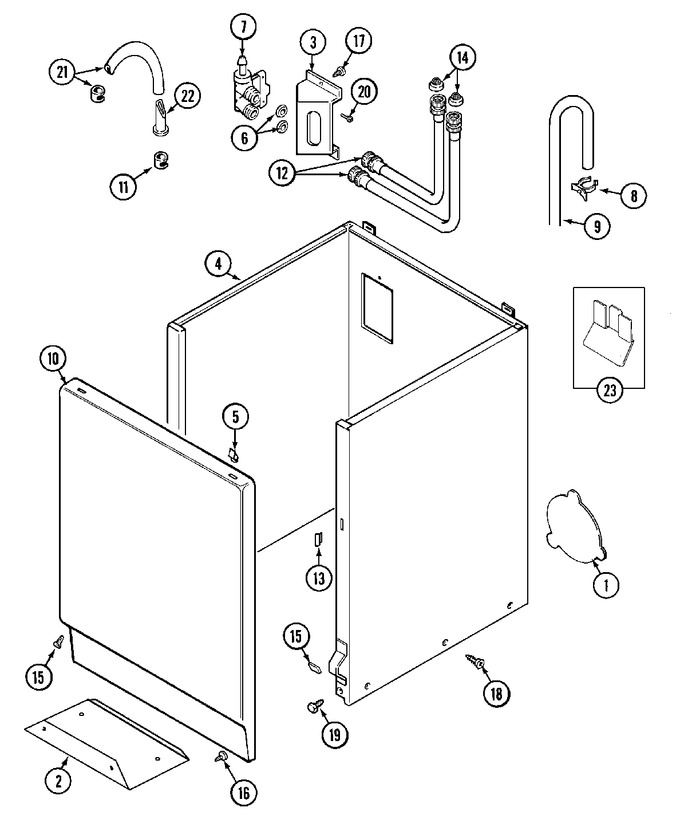

03 - Cabinet
04 - Tub
05 - Base
06 - Transmission
07 - Clutch & Brake
08 - Wiring Information
09 - Top
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP90767 | Screw, Plate (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 001 | 212985 | Plate, Access (w/hole) | 10 |
|
- | ||||
| 001 | NLA | Plate, Access | 10 |
|
- | ||||
| 002 | 213846 | Guard, Belt | 10 |
|
- | ||||
| 003 | 214812 | Bracket,water Valve | 10 |
|
- | ||||
| 003 | WP489128 | Screw, Bracket To Cabinet (Replaces: 22003217) | 10 |
|
$ 9.79 | ||||
| 004 | W11573574 | Screw, V-bracket (Replaces: 22001995) | 18 |
|
Immediately | $ 12.62 | |||
| 004 | 22002381 | V-bracket | 18 |
|
- | ||||
| 004 | 22002382 | Fastener, V-bracket | 18 |
|
- | ||||
| 004 | NLA | Cabinet (wht) | 10 |
|
- | ||||
| 005 | WP22001650 | Fastener, Spring (Replaces: 22001650) | 10 |
|
Immediately | $ 7.34 | |||
| 006 | Y013783 | Washer, Inlet Hose | 10 |
|
$ 18.72 | ||||
| 007 | WP489503 | Clamp, Water Valve (Replaces: 205161) | 10 |
|
Immediately | $ 9.68 | |||
| 007 | WP96160 | Screen, Valve (Replaces: 214337) | 10 |
|
$ 10.54 | ||||
| 007 | WP22001604 | Valve, Water 120v 60hz (Replaces: 22001604) | 10 |
|
Immediately | $ 232.59 | |||
| 007 | 22001605 | Valve, Water 240v 50hz | 10 |
|
- | ||||
| 008 | WP22002765 | Clip, Hose (Replaces: 22001815) | 10 |
|
$ 10.58 | ||||
| 009 | 22001816 | Hose, Drain | 10 |
|
$ 38.57 | ||||
| 009 | WP22003410 | Hose, Drain (Replaces: 22002700) | 16 |
|
Immediately | $ 47.69 | |||
| 009 | 22002701 | Retainer, Drain Hose | 16 |
|
- | ||||
| 010 | 22001803 | Panel, Front (wht) | 10 |
|
- | ||||
| 010 | 22001804 | (alm) | 10 |
|
- | ||||
| 010 | 33001268 | Pad, Door | 10 |
|
- | ||||
| 011 | WP489503 | Clamp, Hose (Replaces: 205161) | 10 |
|
Immediately | $ 9.68 | |||
| 012 | WP89503 | Inlet Hose Assembly (Replaces: 205828) | 10 |
|
Immediately | $ 21.68 | |||
| 012 | W11629055 | Inlet Hose Assembly (Replaces: 208100) | 10 |
|
$ 24.93 | ||||
| 013 | 214376 | Spacer, Front Panel | 10 |
|
- | ||||
| 014 | 200961 | Screen Washer, Inlet Hose | 10 |
|
- | ||||
| 015 | 213280 | Front Panel Bracket/fastener | 10 |
|
- | ||||
| 015 | 22001496 | Screw, Front Panel | 10 |
|
$ 5.38 | ||||
| 016 | WP90767 | Screw, Belt Guard (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 017 | WP90767 | Screw, Valve Bracket (Replaces: 212276) | 10 |
|
Immediately | $ 7.04 | |||
| 018 | 213007 | Screw, Cabinet Sides | 10 |
|
$ 10.99 | ||||
| 019 | WPW10346892 | Screw, Cabinet (Replaces: 213121) | 10 |
|
Immediately | $ 6.47 | |||
| 019 | WP27001200 | Screw, Cabinet (Replaces: 213122) | 10 |
|
$ 6.91 | ||||
| 020 | Y313561 | Screw, Water Valve | 10 |
|
$ 5.27 | ||||
| 021 | 22001608 | Injector Hose & Clamp Kit | 10 |
|
- | ||||
| 022 | 22001900 | Preventer, Back Flow | 10 |
|
$ 13.67 | ||||
| 023 | 22001972 | Clip, Cabinet | 15 |
|
- |
