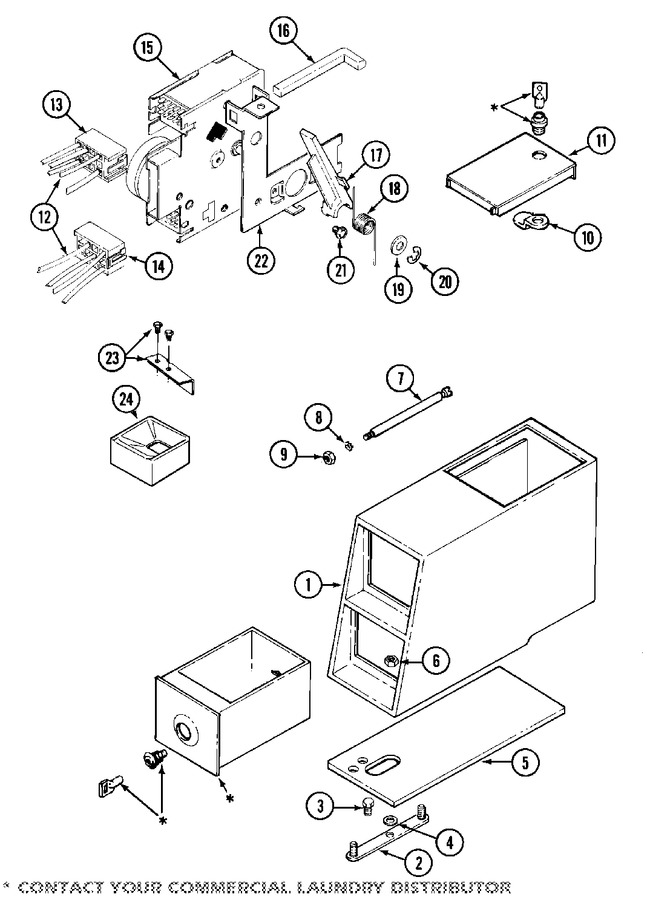

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP22002478		Vault, Coin (wht)cs   (Replaces: 22002478)	10			$ 266.69
001	22002885		Vault, Coin (bsq)	10	Appelez-nous	-
002	22001810		Strap, Mounting	10	Appelez-nous	-
003	WP90767		Screw   (Replaces: 211294)	10		Immediately	$ 7.04
004	910309		Washer	10	Appelez-nous	-
005	22001870		Gasket, Coin Vault (wht)	10	Appelez-nous	-
005	22002599		Gasket, Coin Vault (bsq)	10	Appelez-nous	-
006	WP62739		Nut   (Replaces: Y052740)	10			$ 6.85
007	WP8576635		Locking Bolt, Coin Slide   (Replaces: 22001903)	10		Immediately	$ 67.13
008	910387		Lock Washer	10	Appelez-nous	-
009	Y052721		Nut	10			$ 21.38
010	22003677		Locking Cam	10			$ 5.71
010	NLA		Cam, Locking	10	Appelez-nous	-
011	22003679		Timer Access Door Assy (white)	10			$ 70.41
011	22003692		Timer Access Door Assy(bisque)	10	Appelez-nous	-
012	22002324		Wire Harness	10	Appelez-nous	-
013	22001885		Housing, Connector (rt)----n	10	Appelez-nous	-
014	22001886		Housing, Connector (lt)	10	Appelez-nous	-
015	WP22001083		Timer   (Replaces: 22001083)	10		Immediately	$ 568.89
016	216442		Rod, Actuator	10			$ 44.45
017	22001042		Pivot Arm, Timer	10			$ 5.84
018	214663		Spring For Timer Lever	10	Appelez-nous	-
019	22001398		Retainer, Spring----na	10	Appelez-nous	-
020	Y312270		E Clip	10	Appelez-nous	-
021	216412		Screw	10	Appelez-nous	-
022	22001043		Bracket, Timer	10	Appelez-nous	-
023	22001811		Actuator Kit, Washer	10	Appelez-nous	-
024	22001913		Actuation Door Kit (wht)	10	Appelez-nous	-
024	22002533		Weld Assy., Funnel	10	Appelez-nous	-
024	22003794		Kit, Door Actuator (alm) For Bisque Also	10	Appelez-nous	-
