SELECT A DIAGRAM

01 - Control Panel


02 - Control Center


03 - Top


04 - Cabinet


05 - Tub


06 - Base


07 - Clutch & Brake


08 - Transmission

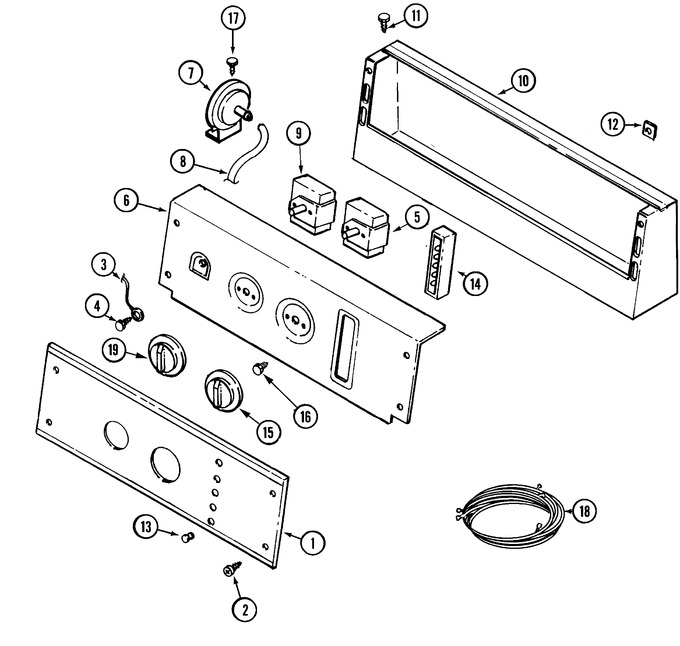

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	W10136396		Control Panel W/lens	10	Appelez-nous	-
002	WPW10131119		Screw, Torx   (Replaces: 215506)	10			$ 6.26
003	22001959		Wire, Ground	10	Appelez-nous	-
004	WP489128		Screw, Serrated Washer Head Hx   (Replaces: 22003817)	10			$ 9.79
005	33002788		Program Switch	10	Appelez-nous	-
006	W10136399		Bracket, Back (bsq)	10	Appelez-nous	-
006	W10136397		Bracket, Back (wht)	10	Appelez-nous	-
007	W10136401		Switch, Pressure	10			$ 71.31
008	WP22001619		Tube, Air   (Replaces: 22001619)	10			$ 75.73
009	W10330138		Switch, 2-way Load Size   (Replaces: W10136394)	10			$ 200.67
010	W10136403		Console (bsq)	10	Appelez-nous	-
010	W10136402		Console (wht)	10	Appelez-nous	-
011	WP90767		Screw   (Replaces: 212276)	10		Immediately	$ 7.04
012	215003		Fastener	10	Appelez-nous	-
013	WP215564		Lens, Indicator (amber)   (Replaces: 215564)	10		Immediately	$ 7.14
014	206881		Indicator, 5 Light 115v	10			$ 96.51
015	206894		Knob W/bump	10	Appelez-nous	-
016	WP488234		Screw   (Replaces: Y313588)	10			$ 6.07
017	WPW10139210		Screw, No.8 X 5/16 Inch   (Replaces: 211168)	10			$ 6.75
018	Y200832		Capacitor	10			$ 66.37
018	W10136406		Harness, Wire Csl	10	Appelez-nous	-
019	205663		Knob For Selector Switch	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
