SELECT A DIAGRAM

01 - Cover

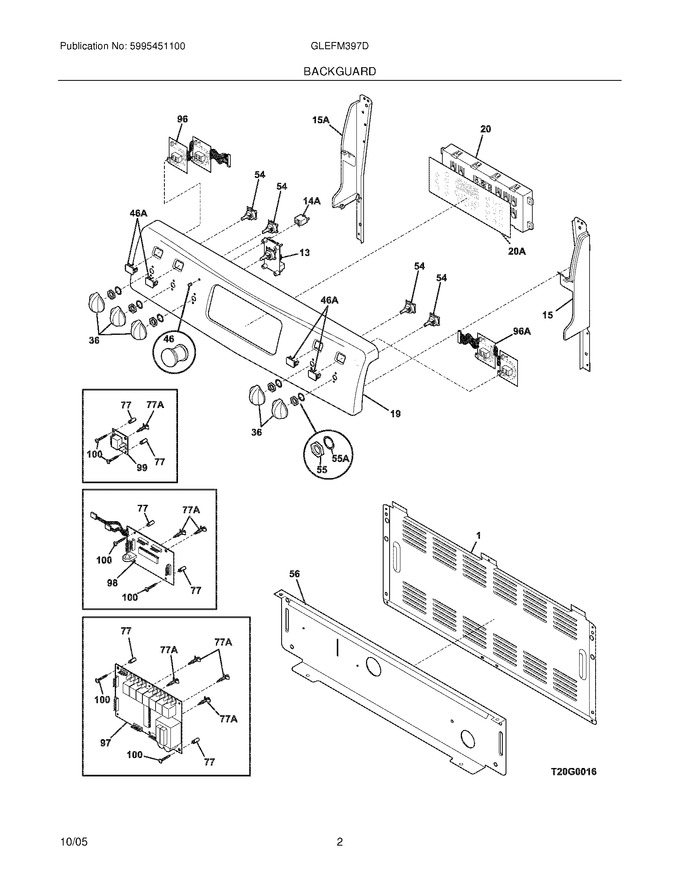

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
13	316414400		Control,bake ,mini Oven				$ 282.50
15	316411403		Support,backguard ,white ,rh				$ 84.10
19	316424149		Panel,control ,white				$ 359.78
36	316223017		Knob,control ,white				$ 48.93
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
54	316239605		Control,surface Element ,dual ,potentiometer		Appelez-nous	-
55	316247700		Nut,hex Control Mtg ,(5)				$ 18.20
56	316234029		Shield,backguard ,white ,inner   (Replaces: 316234012)				$ 87.17
77	316247900		Spacer,power Board ,(2)				$ 44.65
96	316426300		Board,display ,lh				$ 111.70
97	316426501		Board,power				$ 318.76
98	316426400		Board,user Interface				$ 247.85
99	316426600		Board,remote Relay				$ 76.81
100	5303289910		Screw,8a ,1`` ,power Board Mtg				$ 5.67
14A	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15A	316411402		Support,backguard ,white ,lh				$ 94.55
20A	316419701		Overlay,clock ,white ,w/mini Oven ,es510				$ 57.79
46A	316239000		Lens,led Display				$ 56.28
55A	316247800		Washer,lock ,(5) ,control Mtg				$ 18.20
77A	316114100		Spacer,(2)				$ 60.96
96A	316426301		Board,display ,rh				$ 353.01
F20	316418704		Clock/timer,electronic ,w/mini Oven ,es510				$ 373.22
NI	316247600		Spacer,foam ,(16) ,user Interface		Appelez-nous	-
NI	316416910		Harness,main Control				$ 58.54
NI	316416909		Harness,mini Oven Cntl		Appelez-nous	-
NI	316416904		Harness,remote Relay				$ 27.14
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
