SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body

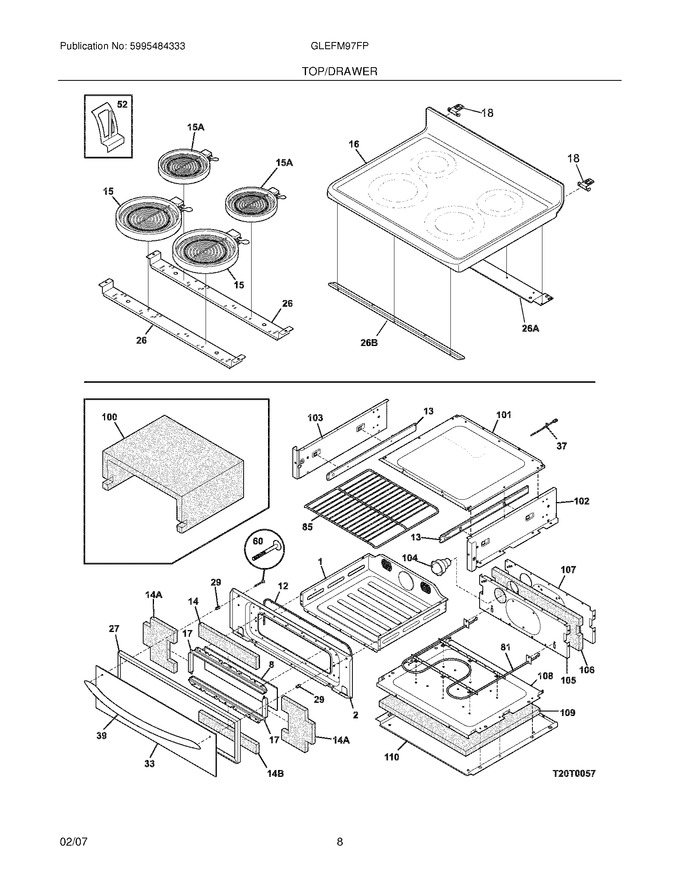

07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316414101		Drawer,mini Oven				$ 70.98
2	316409803		Liner,drawer ,mini Oven ,w/ Window				$ 36.44
8	316431901		Glass,inner Door ,mini Oven				$ 52.36
12	316410700		Seal,door ,mini Oven				$ 50.35
13	316449800		Glide,drawer ,mini Oven ,(2)		Appelez-nous	-
14	316414202		Insulation,door Top ,mini Oven				$ 12.08
16	316456263		Main Top,smooth Top ,black				$ 483.99
17	316431801		Spacer,glass ,mini Oven ,(2)		Appelez-nous	-
18	316436600		Hinge Bracket,maintop ,(2)				$ 45.36
26	316427600		Channel,element Support ,(2)		Appelez-nous	-
27	316409902		Trim,door ,black		Appelez-nous	-
29	316429000		Spacer,handle ,(2)		Appelez-nous	-
33	316410011		Glass,drawer ,black ,front				$ 44.59
39	316246103		Handle,door/drawer ,black				$ 123.43
52	316461700		Clip,element Mtg				$ 12.05
60	316001013		Screw,wafer Head `10-24 X 1.375 ,handle Mtg.			Immediately	$ 2.41
85	316411000		Rack,mini Oven				$ 67.15
100	316410900		Insulation,wrapper ,mini Oven		Appelez-nous	-
101	316410201		Panel,top ,mini Oven		Appelez-nous	-
102	316431201		Panel,oven Side ,rh ,mini Oven		Appelez-nous	-
103	316431203		Panel,oven Side ,lh ,mini Oven		Appelez-nous	-
104	316431500		Light Assembly,mini Oven				$ 29.82
105	316431303		Panel,main Back ,mini Oven		Appelez-nous	-
106	316431400		Insualtion,oven Back ,mini Oven		Appelez-nous	-
107	316431307		Shield,main Back ,mini Oven		Appelez-nous	-
108	316410101		Panel,bottom ,mini Oven		Appelez-nous	-
109	316410800		Insulation,floor ,mini Oven		Appelez-nous	-
110	316410400		Shield,floor ,mini Oven		Appelez-nous	-
14A	316414201		Insulation,door Sides ,mini Oven ,(2)				$ 12.08
14B	316414203		Insulation,door Bottom ,mini Oven				$ 12.02
26A	316099202		Bracket,chassis Support ,rear		Appelez-nous	-
26B	316214200		Bracket,chassis Support ,front		Appelez-nous	-
F15	316555800		Element,dual ,9``/6`` ,surface ,1200w/1300w,radiant   (Replaces: 316418401)			Immediately	$ 138.90
F15A	318198952		Element,surface ,dual ,750w/1800w ,(2)   (Replaces: 316419902)			Immediately	$ 250.90
F37	316490001		Probe,oven Temp ,mini Oven			Immediately	$ 68.80
F81	316413902		Element,bake ,mini Oven   (Replaces: 316413900)				$ 166.09
NI	316466717		Harness-wiring,surface		Appelez-nous	-
NI	316416928		Harness,mini Oven ,to Probe		Appelez-nous	-
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316437601		Washer,shoulder ,nylon ,(2)		Appelez-nous	-
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316463400		Spacer,handle ,black ,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
