SELECT A DIAGRAM

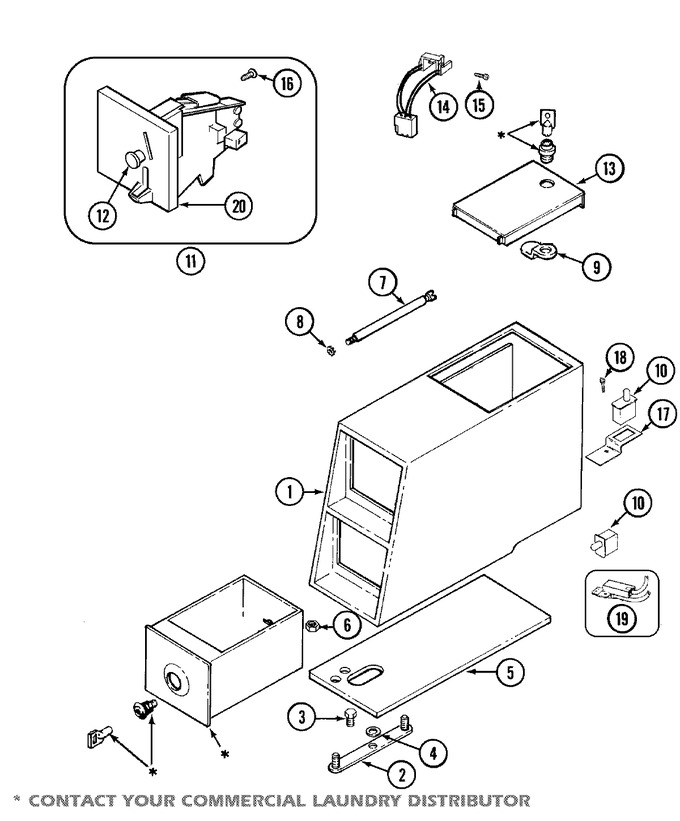

01 - Control Center (mat12pdbaq)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10529176 | Vault, Coin (bsq) (Replaces: 33002428) | 24 |
|
$ 273.48 | ||||
| 3 | WP90767 | Screw (Replaces: 211294) | 24 |
|
Immediately | $ 7.04 | |||
| 4 | 910309 | Washer | 24 |
|
- | ||||
| 5 | 22002599 | Gasket, Coin Vault (bsq) | 24 |
|
- | ||||
| 6 | WP62739 | Nut (Replaces: Y052740) | 24 |
|
$ 6.85 | ||||
| 7 | 213035 | Bolt, Locking | 24 |
|
$ 5.84 | ||||
| 8 | 910181 | Lock Washer | 24 |
|
- | ||||
| 9 | 22001905 | Cam, Locking | 24 |
|
- | ||||
| 10 | WPW10131838 | Switch, Sensor (Replaces: 33001250) | 24 |
|
$ 21.52 | ||||
| 10 | 912012 | Screw | 24 |
|
- | ||||
| 11 | 22003815 | Dual Faceplate | 10 |
|
- | ||||
| 11 | WP22004112 | Coin Drop Greenwald Us.25 (Replaces: 22004112) | 39 |
|
$ 327.20 | ||||
| 11 | WP22004112 | Drop Assy., Coin (Replaces: 22001873) | 24 |
|
$ 327.20 | ||||
| 11 | 22002144 | Single Faceplate | 24 |
|
- | ||||
| 12 | 216200 | Button, Return | 24 |
|
- | ||||
| 13 | 22002886 | Door, Access (bsq) | 24 |
|
- | ||||
| 14 | WPW10247389 | Switch Assy., Optic (Replaces: 22001965) | 24 |
|
Immediately | $ 104.31 | |||
| 15 | WP3395530 | Screw (Replaces: 314665) | 24 |
|
$ 6.93 | ||||
| 16 | 216068 | Screw | 24 |
|
- | ||||
| 17 | 22001404 | Bracket, Switch | 24 |
|
- | ||||
| 18 | WP90767 | Screw (Replaces: 212276) | 24 |
|
Immediately | $ 7.04 | |||
| 19 | 22001966 | Harness, Sensor Switch | 24 |
|
- | ||||
| 20 | 33002647 | Single Faceplate Assembly | 39 |
|
- | ||||
| 20 | 22002144 | Single Faceplate | 24 |
|
- |
