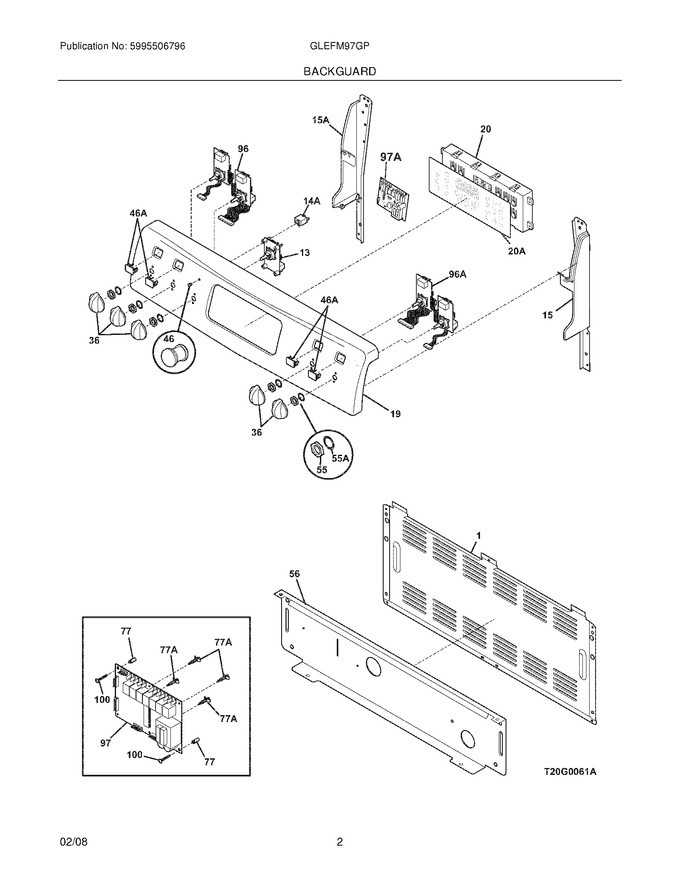

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
13	316414400		Control,bake ,mini Oven				$ 282.50
15	316411405		Support,backguard ,black ,rh				$ 83.95
19	316424150		Panel,control ,black				$ 233.41
36	316223019		Knob,control ,black				$ 45.65
46	316557300		Lens-light/lamp,indicator ,clear   (Replaces: 316437800)			Immediately	$ 16.77
55	316247700		Nut,mounting ,(2)				$ 18.20
56	316234045		Shield,backguard ,black ,inner   (Replaces: 316234013)				$ 66.74
77	316247900		Spacer,power Board ,(5)				$ 44.65
96	316445610		Board,display ,lh Controls ,2 ,potentiometers		Appelez-nous	-
97	316442111		Board,power ,relay				$ 493.57
100	5303289910		Screw,8a ,1`` ,(7) ,power Board Mtg				$ 5.67
14A	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15A	316411404		Support,backguard ,black ,lh				$ 83.95
20A	316419700		Overlay,clock ,black ,w/mini Oven ,es510				$ 51.60
46A	316448000		Lens,led Display				$ 29.51
55A	316247800		Washer-lock,control Mtg				$ 18.20
77A	316114100		Spacer,(4)				$ 60.96
96A	316445611		Board,display ,rh Controls ,2 ,potentiometers		Appelez-nous	-
F20	316462800		Controller,electronic ,es530				$ 360.50
F97A	316442011		Board,rotary ,uib				$ 292.79
FNI	316466603		Harness,wiring ,control				$ 127.26
FNI	316466605		Harness,wiring ,power Board ,to Uib				$ 50.35
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
