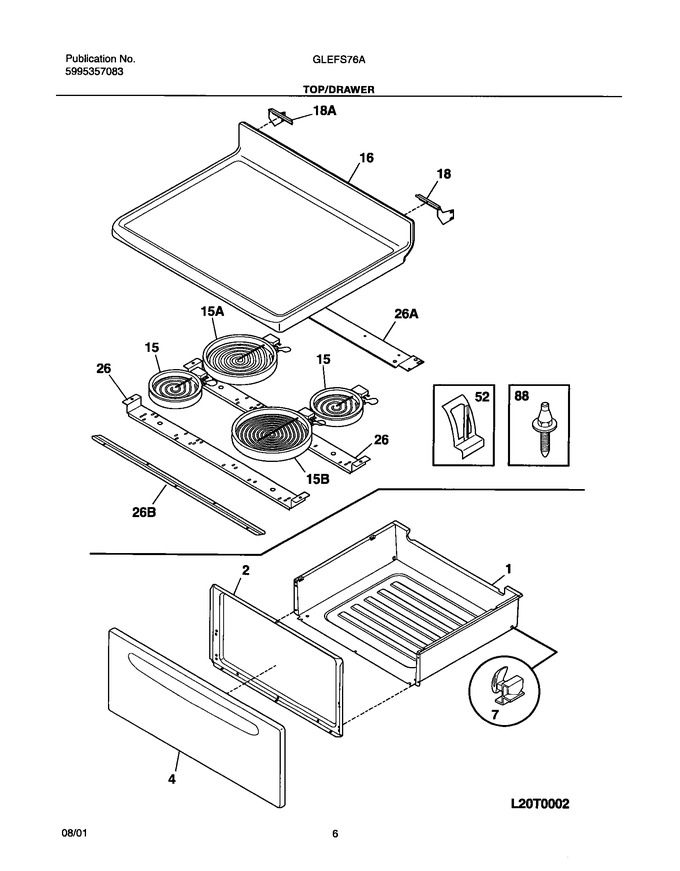

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011503		Drawer				$ 131.51
2	316231500		Liner,drawer				$ 54.40
4	316231309		Panel-drawer,bisque				$ 78.25
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316251904		Main Top Assy,glass/steel ,bisque		Appelez-nous	-
18	316235900		Hinge,main Top ,rh		Appelez-nous	-
26	316230200		Channel,element Support ,(2)		Appelez-nous	-
52	316099400		Clip,element Mtg				$ 29.56
88	316099500		Pin,guide ,(2)				$ 6.53
18A	316235901		Hinge,main Top ,lh		Appelez-nous	-
26A	316099200		Bracket,chassis Support ,rear		Appelez-nous	-
26B	316214200		Bracket,chassis Support ,front		Appelez-nous	-
F15	318198834		Element,8`` ,surface ,2200 W ,radiant   (Replaces: 316010206)				$ 205.36
F15A	318198817		Element,6`` ,surface ,1200 W ,radiant   (Replaces: 316010205)			Immediately	$ 192.78
F15B	316135401		Element`9`` ,surface ,2500w ,radiant   (Replaces: 316224200)			Immediately	$ 80.96
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316253515		Wiring Harness,surface Element		Appelez-nous	-
NI	316112101		Cleaner,cooktop		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
