SELECT A DIAGRAM

Diagram for 01 - Wiring Information
01 - Wiring Information

Diagram for 02 - Control Center (mat12pdag/pdeg)
02 - Control Center (mat12pdag/pdeg)

Diagram for 03 - Top (mat12pdag/pdeg/psag)
03 - Top (mat12pdag/pdeg/psag)

Diagram for 04 - Tub (mat12pdag/pdeg/psag)
04 - Tub (mat12pdag/pdeg/psag)

Diagram for 05 - Base (mat12pdag/pdeg/psag)
05 - Base (mat12pdag/pdeg/psag)

Diagram for 06 - Transmission (mat12pdag/pdeg/psag)
06 - Transmission (mat12pdag/pdeg/psag)

Diagram for 07 - Clutch & Brake (mat12pdag/pdeg/psag)
07 - Clutch & Brake (mat12pdag/pdeg/psag)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 NLA Wiring Information 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

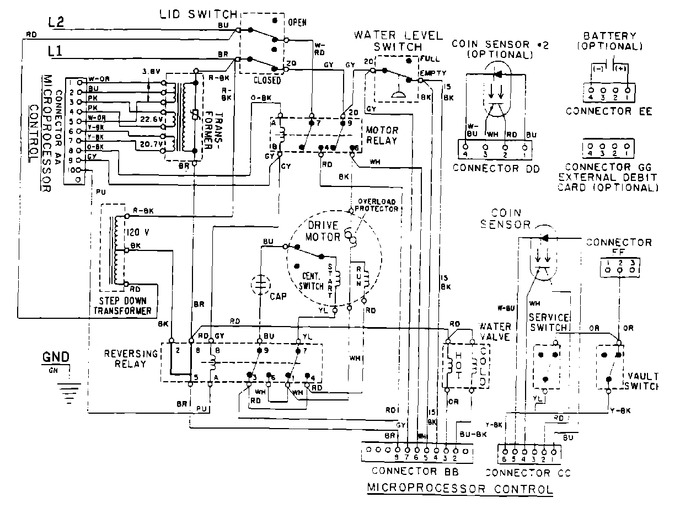

Diagram for MAT12PDEGW
