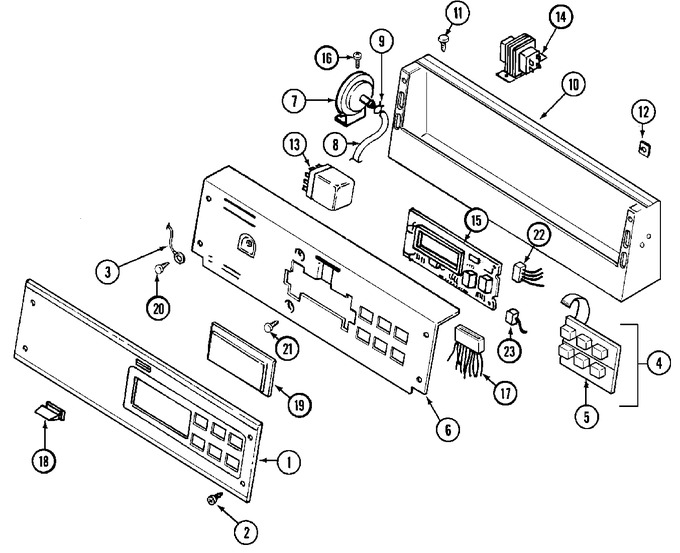

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 2202536 | Facia, Pd/ps | 10 |
|
- | ||||
| 002 | WPW10131119 | Screw, Control Panel (Replaces: 215506) | 10 |
|
$ 6.26 | ||||
| 003 | 22001959 | Wire, Ground | 10 |
|
- | ||||
| 004 | WPW10135389 | Control Switch Assy. (Replaces: 206808) | 10 |
|
$ 125.66 | ||||
| 004 | 215526 | Screw, Switch | 10 |
|
- | ||||
| 005 | WPW10424308 | Button, Push (Replaces: 33002863) | 10 |
|
Immediately | $ 18.38 | |||
| 006 | 22003098 | Bracket, Back (bsq) | 10 |
|
- | ||||
| 006 | 22003099 | Bracket, Back (wht) | 10 |
|
- | ||||
| 007 | 2202532 | Switch, Pressure - Commer | 10 |
|
- | ||||
| 008 | WP22001619 | Tube, Water Level Switch (Replaces: 22001619) | 10 |
|
$ 75.73 | ||||
| 009 | WP285655 | Clamp, Water Level Tube (Replaces: 22003295) | 10 |
|
Immediately | $ 7.55 | |||
| 010 | 22004476 | Cover, Control Bisque | 10 |
|
- | ||||
| 010 | 2202540 | Cover, Control Assembly (wht) | 10 |
|
- | ||||
| 011 | WP90767 | Screw, Console (Replaces: 212276) | 10 |
|
Immediately | $ 7.04 | |||
| 012 | 215003 | Clip, Screw | 10 |
|
- | ||||
| 013 | 206421 | Relay-motor Reversing | 10 |
|
- | ||||
| 013 | 206824 | Relay, Spst 24vdc | 10 |
|
- | ||||
| 014 | WP90767 | Screw (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 014 | WPW10131839 | Transformer (Replaces: 22001960) | 10 |
|
Immediately | $ 120.20 | |||
| 014 | WP90767 | Screw (Replaces: Y313559) | 10 |
|
Immediately | $ 7.04 | |||
| 015 | 22002954 | Deflector, Water (w/adhesive) | 10 |
|
- | ||||
| 015 | WP22004222 | Board, Control (Replaces: 2202537) | 10 |
|
$ 315.04 | ||||
| 015 | 33001204 | Standoff, Circuit Board | 10 |
|
- | ||||
| 015 | M0282005 | Locknut, Control Board (Replaces: 912077) | 10 |
|
$ 7.07 | ||||
| 016 | WP90767 | Screw, Water Level Switch (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 017 | 2202538 | Harness, Wire - Pd | 10 |
|
- | ||||
| 018 | 214610 | Bumper, Lid | 10 |
|
- | ||||
| 019 | WPW10131114 | Cover, Display (Replaces: 22001962) | 10 |
|
$ 42.79 | ||||
| 020 | WP489128 | Screw, Ground Wire (Replaces: 210186) | 10 |
|
$ 9.79 | ||||
| 021 | W10756178 | Screw, Control Board (Replaces: 215527) | 10 |
|
$ 5.39 | ||||
| 022 | WPW10247389 | Switch Assy., Optic (Replaces: 22001965) | 10 |
|
Immediately | $ 104.31 | |||
| 023 | 22001966 | Harness, Sensor Switch | 10 |
|
- |
