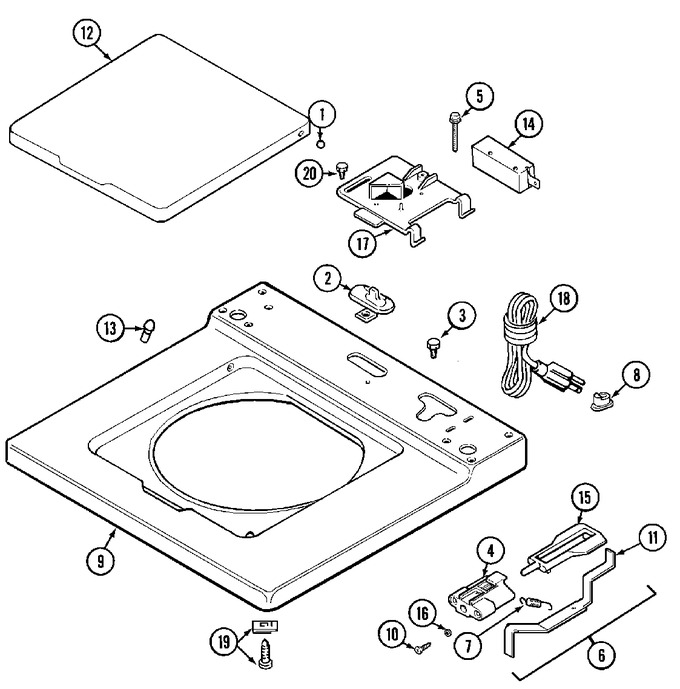

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP211726		Hinge, Ball   (Replaces: 211726)	10		Immediately	$ 7.18
002	W11233072		Screw, Cap   (Replaces: 207159)	10		Immediately	$ 12.62
002	22001298		Cap, Top Cover	10	Appelez-nous	-
003	WP489128		Screw, Ground Wire   (Replaces: 210186)	10			$ 9.79
004	NLA		Bracket, Unbalance----na	10	Appelez-nous	-
005	213501		Screw, Lid Switch	10			$ 12.03
006	22001681		Lever Assy. (unbalance)	10			$ 5.84
007	WP213720		Spring   (Replaces: 213720)	10			$ 7.63
008	211881		Grommet, Cord	10	Appelez-nous	-
009	22001867		Cover, Top (wht)	10	Appelez-nous	-
009	22001970		Cover, Top (wht)	13	Appelez-nous	-
010	W10756178		Screw, Plunger Bracket   (Replaces: 910182)	10			$ 5.39
011	22001672		Lever, Unbalance	10	Appelez-nous	-
012	22001341		Lid W/legend (wht)	10	Appelez-nous	-
013	WP212716		Bumper, Lid   (Replaces: 212716)	10		Immediately	$ 7.88
014	W10820036		Switch, Lid (w/o Tub Light)   (Replaces: 205415)	10		Immediately	$ 27.45
014	22002152		Wire, Jumper	12	Appelez-nous	-
015	216255		Plunger, Lid Switch	10			$ 5.84
016	211500		Washer, Bracket	10	Appelez-nous	-
017	22001678		Bracket, Switch & Fuse	10			$ 28.61
018	22001642		Cord, Power	10	Appelez-nous	-
019	204445		Screw & Fastener Assembly	10	Appelez-nous	-
020	W11233072		Screw, Bracket   (Replaces: 207159)	10		Immediately	$ 12.62
