SELECT A DIAGRAM
01 - Oven
02 - Latch And Vent
03 - Control Panel, Literature
04 - Oven Door
05 - Oven Liner

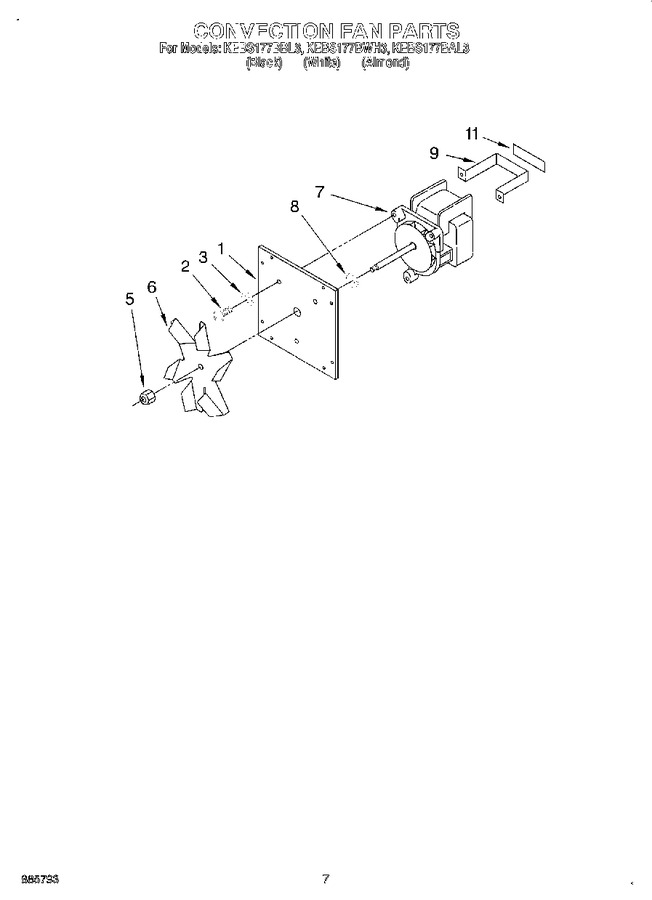

06 - Convection Fan, Optional
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3178512 | Plate, Mounting |
|
- | |||||
| 2 | 4173193 | Screw, Fan Mounting |
|
- | |||||
| 3 | 4173194 | Lockwasher (3) |
|
- | |||||
| 5 | 4173237 | Nut (left Hand) |
|
- | |||||
| 6 | 4173236 | Fan |
|
- | |||||
| 7 | 3182088 | Motor |
|
- | |||||
| 7 | 4173193 | Screw |
|
- | |||||
| 8 | 4173238 | E-ring |
|
- | |||||
| 9 | 4173185 | Bracket Guard |
|
- | |||||
| 11 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 11 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 11 | 832985 | Rack, Cooking (bi-level) |
|
- | |||||
| 11 | 3171507 | Mounting Hardware |
|
- | |||||
| 11 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 11 | 3179790 | Gasket, Foam |
|
- | |||||
| 11 | 350806 | 18 Ga. 80~c Rating (yellow) |
|
- | |||||
| 11 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 11 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 11 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 11 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 11 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 11 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 11 | 242826 | White 14 Ga. 150~c Rating |
|
- | |||||
| 11 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 11 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 11 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 11 | 242832 | Yellow 14 Ga. 200~c Rating |
|
- | |||||
| 11 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 11 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 11 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 11 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | |||||
| 11 | WP261869 | Citrine White (Replaces: 261869) |
|
$ 23.85 | |||||
| 11 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 11 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 11 | 261890 | Harvest Gold |
|
- | |||||
| 11 | 285365 | Toast |
|
- | |||||
| 11 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 11 | 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
Immediately | $ 51.34 | ||||
| 11 | 350942 | Primer |
|
$ 80.69 | |||||
| 11 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 11 | 978883 | Almond |
|
- | |||||
| 11 | 261891 | Harvest Gold |
|
- | |||||
| 11 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 11 | 242829 | Red 12 Ga. 150~c Rating |
|
- | |||||
| 11 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 11 | 285368 | Platinum |
|
- | |||||
| 11 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 11 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- |
