01 - Control Panel
02 - Top
03 - Cabinet
04 - Tub
05 - Base
06 - Transmission
07 - Clutch & Brake
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

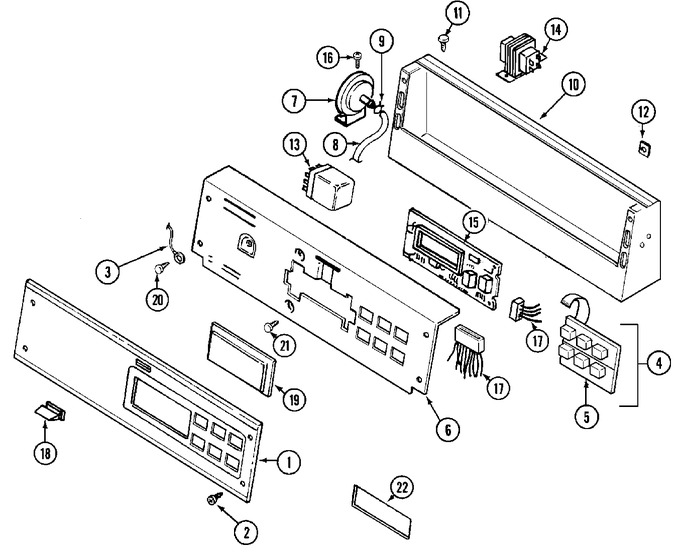

| 001 | 22002418 | Panel, Control (wht) | 10 |
|
- | ||||
| 002 | WPW10131119 | Screw, Control Panel (Replaces: 215506) | 10 |
|
$ 6.26 | ||||
| 003 | 22001959 | Wire, Ground | 10 |
|
- | ||||
| 004 | WPW10135389 | Control Switch Assembly (Replaces: 206808) | 10 |
|
$ 125.66 | ||||
| 004 | 215526 | Screw, Switch | 10 |
|
- | ||||
| 004 | M0282005 | Locknut, Switch (Replaces: 912077) | 10 |
|
$ 7.07 | ||||
| 005 | WPW10424308 | Pushbutton, Control Switch (Replaces: 215517) | 10 |
|
Immediately | $ 18.38 | |||
| 006 | 22001975 | Bracket, Back (wht) | 10 |
|
- | ||||
| 006 | WPW10143462 | Screw, Back Bracket (Replaces: 22002354) | 10 |
|
$ 5.40 | ||||
| 006 | 22003207 | Bracket, Back (wht) | 29 |
|
$ 32.73 | ||||
| 007 | WP22001308 | Switch, Water Level (Replaces: 22001308) | 10 |
|
Immediately | $ 191.68 | |||
| 008 | WP22001619 | Tube, Water Level Switch (Replaces: 22001619) | 10 |
|
$ 75.73 | ||||
| 009 | WP596669 | Clamp, Water Level Tube (Replaces: 410296) | 10 |
|
Immediately | $ 7.56 | |||
| 010 | 206780 | Console (wht) | 10 |
|
- | ||||
| 010 | 22003093 | Console (wht) | 29 |
|
- | ||||
| 011 | WP90767 | Screw, Console (Replaces: 212276) | 10 |
|
Immediately | $ 7.04 | |||
| 012 | 215003 | Clip, Screw | 10 |
|
- | ||||
| 013 | 206421 | Relay, Reversing (dpdt) | 10 |
|
- | ||||
| 013 | 22001418 | Plate, Relay | 10 |
|
- | ||||
| 014 | 211251 | Screw, Transformer | 10 |
|
- | ||||
| 014 | 22001419 | Nut, Transformer | 10 |
|
- | ||||
| 014 | 22002139 | Transformer | 10 |
|
- | ||||
| 015 | 22001511 | Deflector, Water (w/adhesive) | 10 |
|
- | ||||
| 015 | 22001955 | Board Assy., Circuit | 10 |
|
- | ||||
| 015 | 22001973 | Harness, Pr Service | 10 |
|
- | ||||
| 015 | 33001204 | Standoff, Circuit Board | 10 |
|
- | ||||
| 015 | M0282005 | Locknut, Control Board (Replaces: 912077) | 10 |
|
$ 7.07 | ||||
| 016 | WP90767 | Screw, Water Level Switch (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 017 | 22002140 | Wire Harness, Main | 10 |
|
- | ||||
| 017 | 22002699 | Capacitor, Microfarad | 10 |
|
- | ||||
| 017 | 314531 | Connector, Edgeboard | 10 |
|
- | ||||
| 017 | Y312953 | Terminal, Edgeboard | 10 |
|
- | ||||
| 018 | 214610 | Bumper, Lid | 10 |
|
- | ||||
| 019 | WPW10131114 | Cover, Display (Replaces: 22001962) | 10 |
|
$ 42.79 | ||||
| 020 | WP489128 | Screw, Ground Wire (Replaces: 210186) | 10 |
|
$ 9.79 | ||||
| 021 | W10756178 | Screw, Control Board (Replaces: 215527) | 10 |
|
$ 5.39 | ||||
| 021 | 22002155 | Harness Kit, Reader (12``) | 10 |
|
- | ||||
| 022 | WPW10131115 | Bezel (Replaces: 22001976) | 10 |
|
$ 7.63 |
