01 - Control Panel
02 - Top
03 - Cabinet
04 - Tub
05 - Transmission
06 - Base

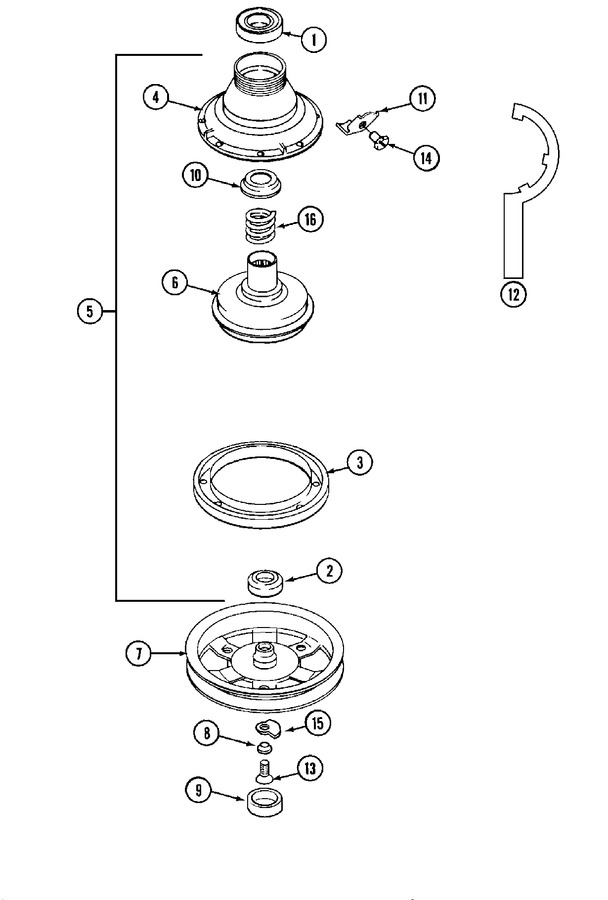

07 - Clutch & Brake
08 - Supplemental Information
09 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y200720 | Ball Bearing, Radial----s | 10 |
|
- | ||||
| 002 | 200835 | Bearing, Brake Rotor | 10 |
|
$ 30.47 | ||||
| 003 | 22003890 | Brake Stator (drum) | 10 |
|
- | ||||
| 004 | 22003891 | Support For Brake Stator-drum | 10 |
|
- | ||||
| 005 | 201190 | Brake Assembly | 10 |
|
- | ||||
| 006 | 201126 | Rotor, Brake (w/facing) | 10 |
|
- | ||||
| 007 | WP6-2301530 | Pulley (Replaces: 22002429) | 10 |
|
$ 178.73 | ||||
| 008 | WP22003555 | Washer, Lock (Replaces: 211090) | 10 |
|
$ 19.26 | ||||
| 009 | 22002428 | Cover, Dust (plastic) | 10 |
|
$ 22.21 | ||||
| 010 | 211039 | Retainer, Brake Spring | 10 |
|
- | ||||
| 011 | 213325 | Clip, Retainer | 10 |
|
$ 5.51 | ||||
| 012 | Y038315 | Tool, Brake Pkg Assy | 10 |
|
- | ||||
| 013 | WP912618 | Screw,stop Lug(center Shaft) (Replaces: 211375) | 10 |
|
$ 6.98 | ||||
| 014 | 213326 | Screw, Retaining Clip | 10 |
|
- | ||||
| 015 | WP211089 | Lug, Stop (Replaces: 211089) | 10 |
|
$ 10.16 | ||||
| 016 | 211041 | Spring, Brake | 10 |
|
- |
