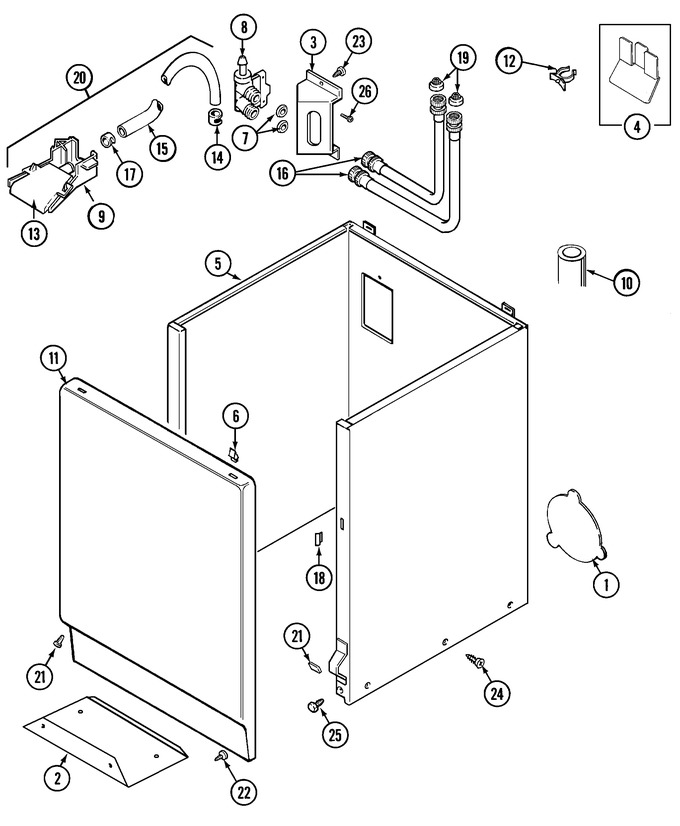

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP90767		Screw   (Replaces: 211294)	10		Immediately	$ 7.04
001	22002924		Plate, Cover (w/hole)	10	Appelez-nous	-
001	NLA		Plate, Access	10	Appelez-nous	-
002	213846		Guard, Belt	10	Appelez-nous	-
003	22002361		Bracket, Valve	10	Appelez-nous	-
004	22001972		Clip, Cabinet	10	Appelez-nous	-
005	NLA		Cabinet (wht)	10	Appelez-nous	-
006	WP22001650		Fastener, Spring   (Replaces: 22001650)	10		Immediately	$ 7.34
007	Y013783		Gasket, Inlet Hose	10			$ 18.72
008	22001275		Valve, Water	10			$ 95.48
009	22001187		Injector (upr)	10			$ 35.13
010	WP22003410		Hose, Drain   (Replaces: 22003410)	10		Immediately	$ 47.69
011	22001803		Panel, Front (wht)	10	Appelez-nous	-
012	22002151		Clip, Hose	10	Appelez-nous	-
013	WP22001186		Injector (lwr)   (Replaces: 22001186)	10		Immediately	$ 75.68
014	WP596669		Clamp,hose-injec.hose To Valve   (Replaces: 216169)	10		Immediately	$ 7.56
015	22001190		Hose, Injector	10	Appelez-nous	-
016	22003682		Inlet Hose Assy (cold)	10	Appelez-nous	-
016	22003683		Inlet Hose Assy (hot)	10	Appelez-nous	-
017	WP489503		Clamp, Hose   (Replaces: 216170)	10		Immediately	$ 9.68
018	214376		Spacer, Front Panel	10	Appelez-nous	-
019	22002960		Strainer, Washer Inlet	10			$ 5.70
020	WP22001304		Injector Assy., Water   (Replaces: 22001304)	10		Immediately	$ 59.06
021	22001496		Screw, Torx	10			$ 5.38
022	WP90767		Screw   (Replaces: 211294)	10		Immediately	$ 7.04
023	WP489128		Screw, Serrated Washer Head Hx   (Replaces: 22003817)	10			$ 9.79
024	213007		Screw, Cabinet	10			$ 10.99
025	WPW10346892		Screw   (Replaces: 213121)	10		Immediately	$ 6.47
025	WP27001200		Screw,cbnt.to Frnt Of Base--na   (Replaces: 213122)	10			$ 6.91
026	Y313561		Screw----na	10			$ 5.27
