SELECT A DIAGRAM

01 - Oven


02 - Control Panel, Literature

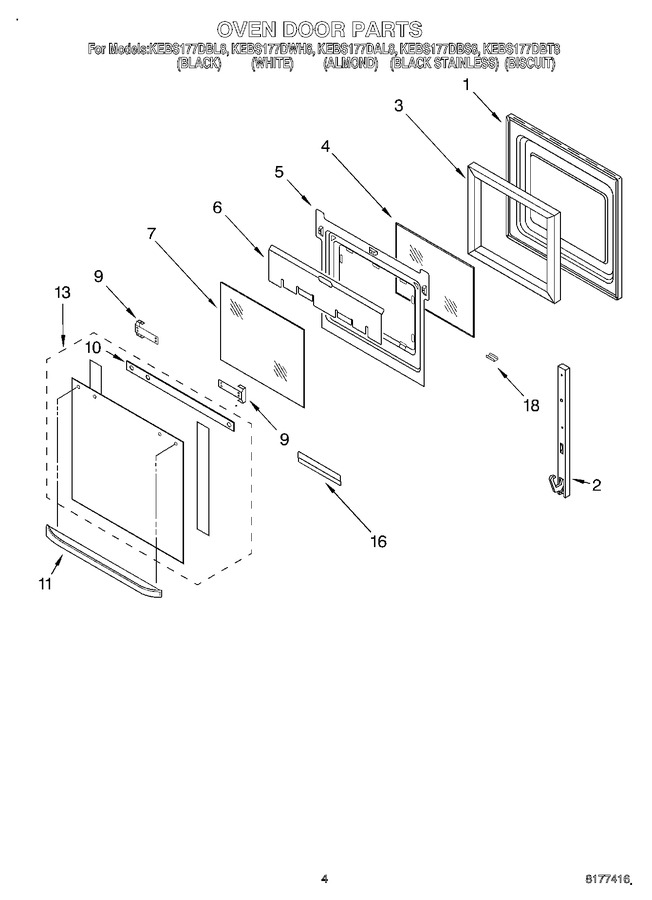

03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451718		Door Liner		Appelez-nous	-
2	WP4455525		For Bs Model   (Replaces: 4454948)			Immediately	$ 69.96
2	WP4455523		Hinge, Door   (Replaces: 4454946)				$ 59.67
2	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
3	4451721		Insulation, Door				$ 37.62
4	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 151.75
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	4451670		Retainer, Glass		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
6	4450361		Shield, Heat		Appelez-nous	-
7	WP4449257		Glass, Inner (2) For Bs Model   (Replaces: 4449257)			Immediately	$ 178.55
9	4450813		Bracket, Handle				$ 24.20
9	W10276642		Screw   (Replaces: 4451040)				$ 5.49
10	4451673		Seal, Top		Appelez-nous	-
11	4448411		Handle (black)		Appelez-nous	-
11	4448412		Handle (white)		Appelez-nous	-
11	4448413		Handle (almond)		Appelez-nous	-
11	4452128		Handle (biscuit)		Appelez-nous	-
13	4452476		Door Glass, Assy (black-stainless)		Appelez-nous	-
13	4452073		Door Glass, Assy (almond)		Appelez-nous	-
13	4452146		Door Glass, Assy (biscuit)		Appelez-nous	-
13	4452071		Door Glass, Assy (black Model)		Appelez-nous	-
13	4452072		Door Glass, Assy (white Model)		Appelez-nous	-
16	4451668		Retainer, Glass (2) For Bs Model		Appelez-nous	-
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
18	4452119		Clip, Retainer (biscuit)		Appelez-nous	-
18	4450864		Clip, Retainer (white)		Appelez-nous	-
18	4450863		Clip, Retainer (black)		Appelez-nous	-
18	4450865		Clip, Retainer (almond)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
