SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

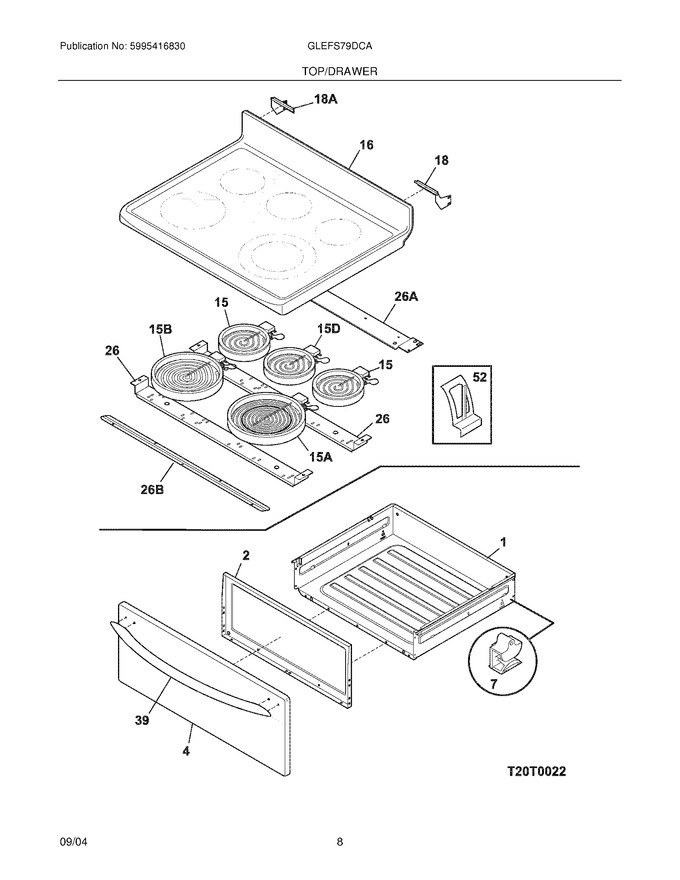

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408701)			Immediately	$ 110.61
2	316403301		Liner,drawer		Appelez-nous	-
4	316409400		Panel,drawer Front ,stainless				$ 322.40
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316421281		Maintop,frame/glass ,black		Appelez-nous	-
18	316235900		Hinge,main Top ,rh		Appelez-nous	-
26	316427600		Channel,element Support ,(2)		Appelez-nous	-
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
52	316278300		Clip,element Mtg		Appelez-nous	-
18A	316235901		Hinge,main Top ,lh		Appelez-nous	-
26A	316099202		Bracket,chassis Support ,rear		Appelez-nous	-
26B	316214200		Bracket,chassis Support ,front		Appelez-nous	-
F15	318198817		Element,surface ,6`` ,1200 W ,radiant   (Replaces: 316010205)			Immediately	$ 192.78
F15A	316433700		Element,surface ,12`` ,2700w ,radiant		Appelez-nous	-
F15B	316135401		Element,surface ,9`` ,2500w ,radiant   (Replaces: 316224200)			Immediately	$ 80.96
F15D	318198804		Element,surface ,warmer ,100 W		Appelez-nous	-
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316416827		Harness,wiring ,surface		Appelez-nous	-
NI	316264000		Cleaner,cooktop		Appelez-nous	-
NI	316279700		Cleaner,stainless Steel		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
