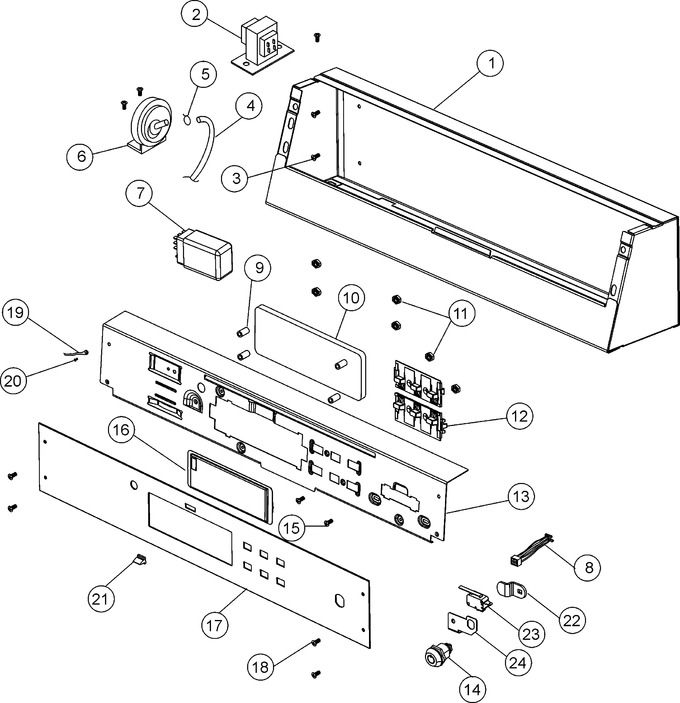

01 - Control Panel
02 - Top
03 - Cabinet
04 - Tub
05 - Transmission
06 - Clutch & Brake
07 - Base
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 22003093 | Console (wht) | 10 |
|
- | ||||
| 002 | 22001417 | Transformer, Step Down | 10 |
|
- | ||||
| 003 | 215526 | Screw | 10 |
|
- | ||||
| 004 | WP22001619 | Tube, Air (Replaces: 22001619) | 10 |
|
$ 75.73 | ||||
| 005 | WP596669 | Clamp,water Level Swtch Tube (Replaces: 410296) | 10 |
|
Immediately | $ 7.56 | |||
| 006 | 203263 | Switch, Water Level | 10 |
|
- | ||||
| 006 | WP90767 | Screw (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 007 | 206421 | Relay-motor Reversing | 10 |
|
- | ||||
| 008 | WPW10247389 | Switch Assy., Optic (Replaces: 22001965) | 10 |
|
Immediately | $ 104.31 | |||
| 009 | 33001204 | Standoff, Circuit Board | 10 |
|
- | ||||
| 010 | 22002954 | Deflector, Water (w/adhesive) | 10 |
|
- | ||||
| 010 | WP22004222 | Commercial D.c. Control Board (Replaces: 22004222) | 10 |
|
$ 315.04 | ||||
| 011 | M0282005 | Locknut (Replaces: 912077) | 10 |
|
$ 7.07 | ||||
| 012 | WPW10135389 | Control Switch Assy. (Replaces: 206808) | 10 |
|
$ 125.66 | ||||
| 012 | WPW10424308 | Button, Push (Replaces: 33002863) | 10 |
|
Immediately | $ 18.38 | |||
| 013 | 215003 | Fastener | 10 |
|
- | ||||
| 013 | 22003207 | Bracket, Back (wht) | 10 |
|
$ 32.73 | ||||
| 014 | WPW10133264 | Lock, Access Door (Replaces: 22002349) | 10 |
|
$ 125.12 | ||||
| 015 | W10756178 | Screw (Replaces: 215527) | 10 |
|
$ 5.39 | ||||
| 016 | WPW10131114 | Cover, Display (Replaces: 22001962) | 10 |
|
$ 42.79 | ||||
| 017 | 22004334 | Facia-pn (england) | 10 |
|
- | ||||
| 018 | 215003 | Fastener | 10 |
|
- | ||||
| 018 | WPW10131119 | Screw, Torx (Replaces: 215506) | 10 |
|
$ 6.26 | ||||
| 019 | 22001959 | Wire, Ground | 10 |
|
- | ||||
| 020 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | 10 |
|
$ 9.79 | ||||
| 021 | 214610 | Bumper, Lid | 10 |
|
- | ||||
| 022 | W11165684 | Tab, Locking (Replaces: 33002092) | 10 |
|
$ 8.20 | ||||
| 023 | 22003578 | Switch, Sensor-export | 10 |
|
- | ||||
| 024 | 33001982 | Bracket, Switch Mounting | 10 |
|
- | ||||
| 025 | 22004206 | Harness As Pack (209723) | 10 |
|
- | ||||
| 025 | 22004393 | Harness,wire | 12 |
|
- | ||||
| 025 | 33002090 | Harness, Service | 10 |
|
- | ||||
| 025 | NLA | Harness,wire Main | 11 |
|
- |
