SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Meter Case Parts


04 - Rear Panel Parts


05 - Agitator, Basket And Tub Parts


06 - Brake, Clutch, Gearcase, Motor And Pump Parts


07 - Machine Base Parts


08 - Wiring Harness Parts


09 - Brake And Drive Tube Parts


10 - Gearcase Parts

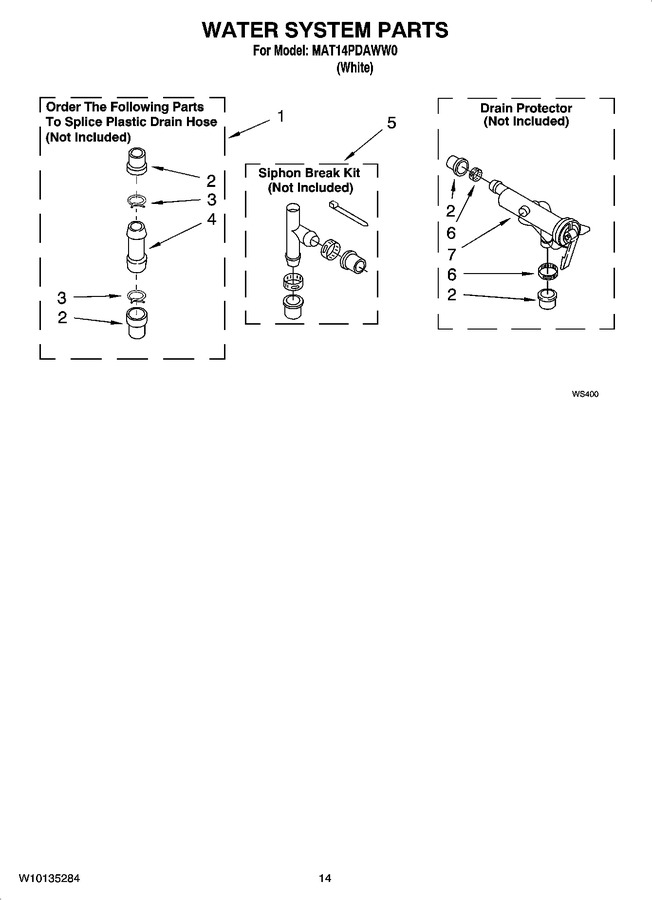

11 - Water System Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	285442		Connector Kit, Plastic Drain Hose				$ 84.62
2	285321		Sleeve Kit, (contains 2 Sleeves)				$ 75.52
3	WP285655		Clamp, Hose   (Replaces: 370447)			Immediately	$ 7.55
4	WP16272		Connector, Straight   (Replaces: 16272)				$ 7.04
5	76660		Siphon Break Kit (not Included)   (Replaces: 285320)			Immediately	$ 119.93
6	WP285655		Clamp, Hose   (Replaces: 65349)			Immediately	$ 7.55
7	367031		Drain Protector (not Included)		Appelez-nous	-
NI	285208		Lubricant (use Only In Brake Shoe Assembly On Roller And Pin)				$ 41.86
NI	389236		Lubricant, Agitator Spline		Appelez-nous	-
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 11.07
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 34.39
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	350572		Oil, Gearcase (16 Oz.)			Immediately	$ 82.45
NI	WP285195		Sealer, Gasket (.20 Fl. Oz.) (6 Ml)   (Replaces: 285195)				$ 93.95

    View Diagram in Separate Window       Print Part List
