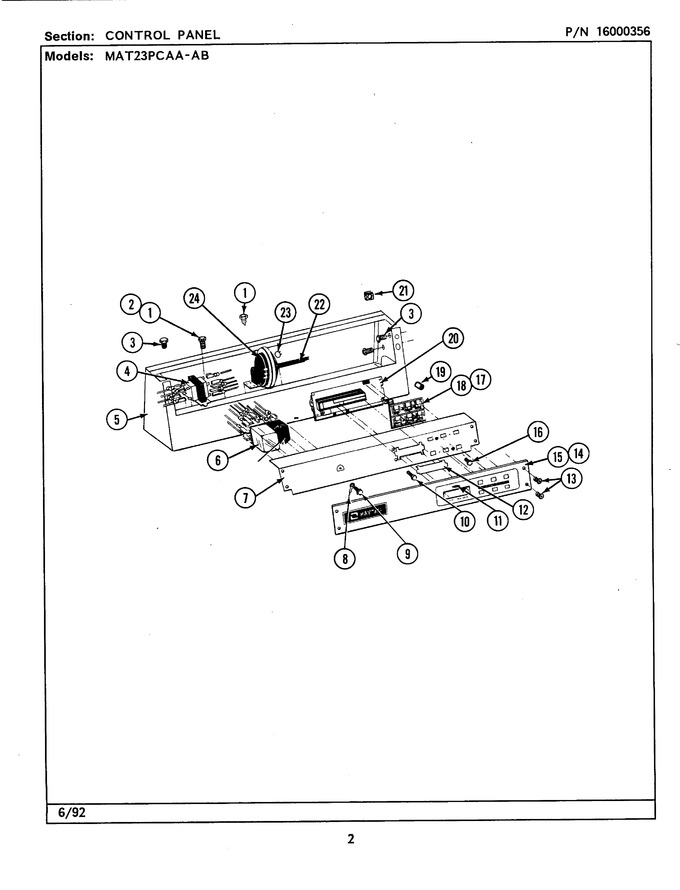

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP90767		Screw   (Replaces: 211294)	B4		Immediately	$ 7.04
002	WP90767		Screw, Ground (cord)   (Replaces: Y313559)	B4		Immediately	$ 7.04
003	WP90767		Screw, Ground Wire/cord   (Replaces: 212276)	B4		Immediately	$ 7.04
004	207766		Transformer	B4	Appelez-nous	-
005	206780		Console (wht)	B4	Appelez-nous	-
005	206780L		(alm)	B4	Appelez-nous	-
005	NLA		(h. Wheat)	B4	Appelez-nous	-
006	206421		Relay, Motor Revers (24 V)	B4	Appelez-nous	-
006	212949		Screw, Relay	B4	Appelez-nous	-
006	215273		Clip, Spring Relay	B4	Appelez-nous	-
007	206825		Plate, Back-up (wht)	B4	Appelez-nous	-
007	NLA		(alm)	B4	Appelez-nous	-
008	205810		Wire, Ground	B4	Appelez-nous	-
009	Y314322		Screw, Ground Wire	B4	Appelez-nous	-
010	215526		Screw, Back-up Plate	B4	Appelez-nous	-
011	214610		Bumper, Lid	B4	Appelez-nous	-
012	215515		Cover, Display	B4	Appelez-nous	-
013	WPW10131119		Screw, Control Panel   (Replaces: 215506)	B4			$ 6.26
014	215519		Panel, Control	B4	Appelez-nous	-
015	207767		Deflector, Control	B4	Appelez-nous	-
016	W10756178		Screw, Back-up Plate   (Replaces: 215527)	B4			$ 5.39
017	WPW10424308		Button, Push   (Replaces: 215517)	B4		Immediately	$ 18.38
018	WPW10135389		Switch Assy. W/bracket   (Replaces: 206808)	B4			$ 125.66
019	Y215513		Spacer Circuit Board	B4	Appelez-nous	-
020	206828		Battery	B4	Appelez-nous	-
020	215510		Support	B4	Appelez-nous	-
020	M0282005		Nut, Lock   (Replaces: 912077)	B4			$ 7.07
020	NLA		Circuit Board Assy	B4	Appelez-nous	-
021	215003		Fastener, Panel & Bracket	B4	Appelez-nous	-
022	WP22001619		Air Dome & Tube   (Replaces: 212942)	B4			$ 75.73
023	WP596669		Clamp, Corbin   (Replaces: 410296)	B4		Immediately	$ 7.56
024	203970		Switch, Water Level	B4			$ 72.19
