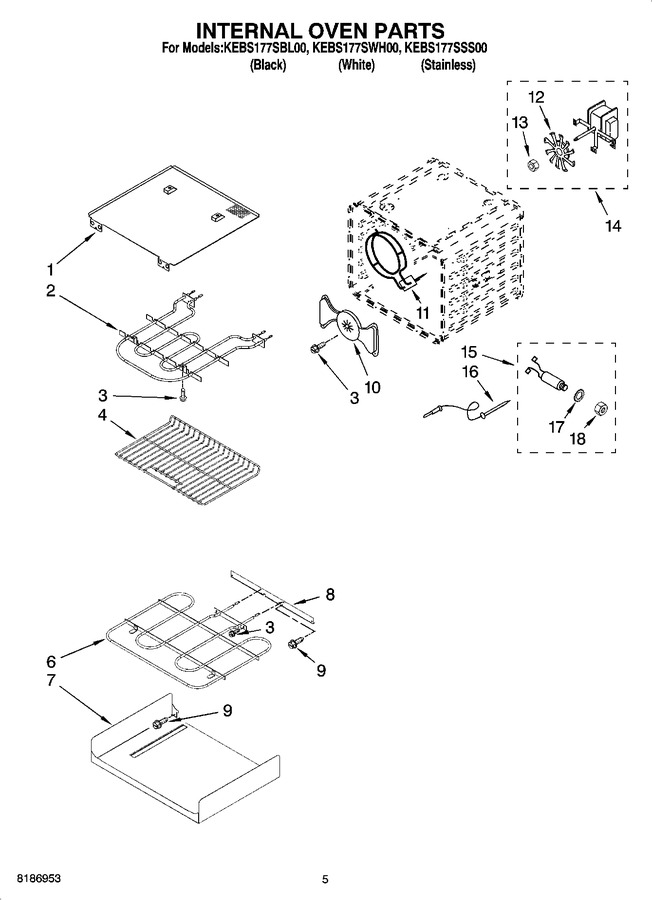

04 - Internal Oven Parts
05 - Top Venting Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8304586 | Element, Broil Shield |
|
- | |||||
| 2 | WP9760774 | Element, Broil (Replaces: 9760774) |
|
Immediately | $ 206.10 | ||||
| 3 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 4 | 8303842 | Rack, Oven |
|
- | |||||
| 6 | WPW10207398 | Element, Bake (Replaces: 9760768) |
|
Immediately | $ 119.70 | ||||
| 7 | 4455036 | Tray, Bake |
|
$ 76.60 | |||||
| 8 | 4450039 | Cover, Bake Tray |
|
$ 78.95 | |||||
| 9 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 10 | 8304422BU | Cover, Fan |
|
$ 70.06 | |||||
| 11 | WP9760769 | Element Convection (Replaces: 9760769) |
|
Immediately | $ 289.61 | ||||
| 12 | 4452226 | Blade, Fan |
|
$ 30.89 | |||||
| 13 | 4452227 | Nut |
|
$ 33.98 | |||||
| 14 | 4451583 | Fan, Convection |
|
$ 140.53 | |||||
| 15 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 97.22 | ||||
| 16 | WP9755542 | Probe, Meat (Replaces: 9755542) |
|
Immediately | $ 82.91 | ||||
| 17 | WP9755547 | Lockwasher (Replaces: 9755547) |
|
$ 5.49 | |||||
| 18 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 6.26 |
