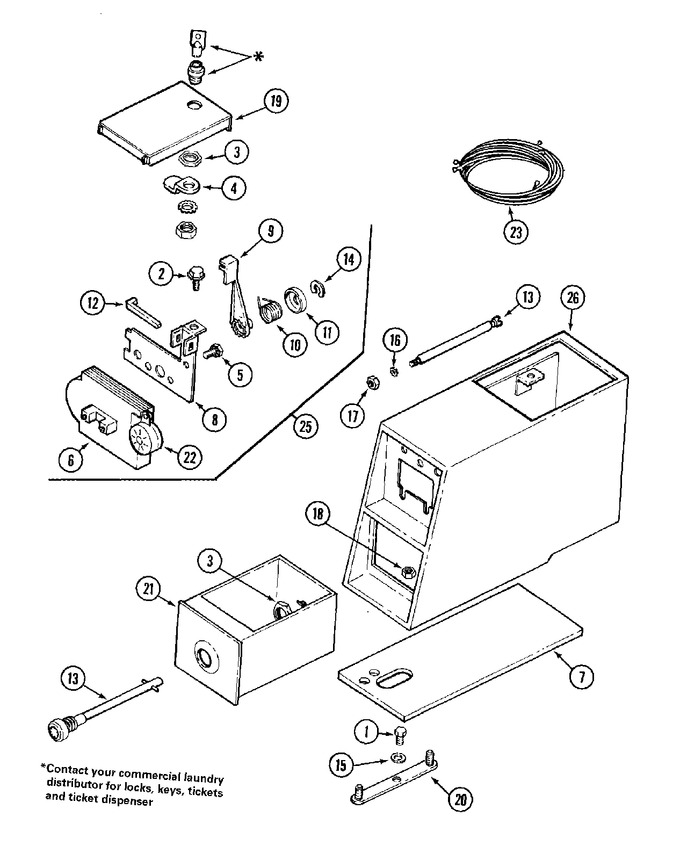

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
002	WP90767		Screw   (Replaces: 212276)	A0		Immediately	$ 7.04
003	W11395752		Nut, Hex   (Replaces: 212328)	A0			$ 11.74
004	W11165684		Locking Cam   (Replaces: 213750)	A0			$ 8.20
005	WP3400014		Screw, Timer   (Replaces: 213966)	A0			$ 6.98
006	214410		Timer Caution Label	A0	Appelez-nous	-
007	214660		Gasket, Meter Case	A0	Appelez-nous	-
008	214661		Bracket For Timer	A0	Appelez-nous	-
009	214662		Pivot Arm For Timer	A0	Appelez-nous	-
010	214663		Spring For Timer Lever	A0	Appelez-nous	-
011	214664		Spring Retainer For Timer	A0	Appelez-nous	-
012	214666		Arm, Actuator	A0	Appelez-nous	-
013	215559		Bolt, Locking	A0			$ 5.25
014	Y312270		E Clip	A0	Appelez-nous	-
015	910309		Washer	A0	Appelez-nous	-
016	910387		Lock Washer	A0	Appelez-nous	-
017	Y052721		Nut	A0			$ 21.38
018	WP62739		Nut   (Replaces: Y052740)	A0			$ 6.85
019	203188		Door, Access (wht)	A0	Appelez-nous	-
019	203188L		Access Door-almond	A0	Appelez-nous	-
019	203188M		Access Door-harvest Wheat	A0	Appelez-nous	-
020	NLA		Mtg. Strap----na	A0	Appelez-nous	-
021	208883		Vault, Coin (wht)   (Replaces: 207913)	A0	Appelez-nous	-
021	NLA		Box, Coin (alm)	A0	Appelez-nous	-
026	206956		Coin Meter Assy - White	A0	Appelez-nous	-
026	206956L		Coin Meter Assy - Almond	A0	Appelez-nous	-
026	206956M		Coin Meter Assy-harv Wheat--na	A0	Appelez-nous	-
027	208222		Timer (cs,ct,da)		Appelez-nous	-
