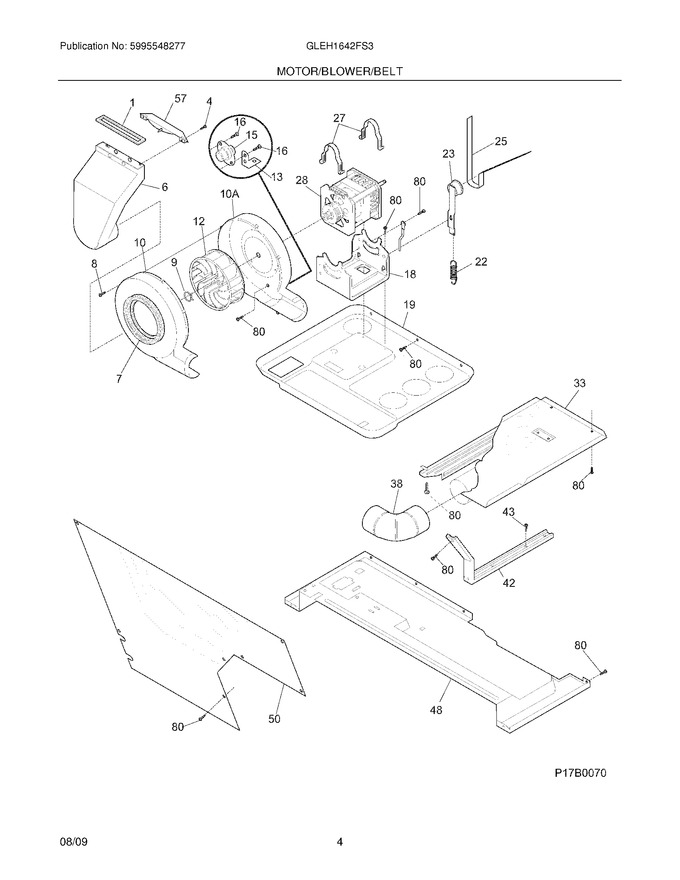

05 - Motor/blower/belt


07 - Control Panel


09 - Lower Cabinet/top


11 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131295200		Seal-air Duct				$ 16.30
4	131168200		Screw,10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
6	5304521121		Duct,air   (Replaces: 134086300)				$ 118.56
7	3204490		Seal-housing To Air Duct				$ 14.18
8	3205245		Screw,pan Head ,6-18ab X 0.60		Appelez-nous	-
9	5304488479		Clamp   (Replaces: 5303304824)			Immediately	$ 32.09
10	134611700		Housing,blower ,front ,with Seal				$ 50.46
12	131476300		Blower Wheel			Immediately	$ 47.00
13	134608400		Ground Strap,thermostat		Appelez-nous	-
16	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
18	131413600		Cradle,motor Mount ,with Idler Stud				$ 104.30
19	134613501		Panel,motor Cradle Mt ,upper		Appelez-nous	-
22	3205241		Spring-idler				$ 75.83
23	5304507499		Idler Arm Assy,with Pulley   (Replaces: 131863100)			Immediately	$ 42.66
27	134242400		Clamp,motor Mtg.			Immediately	$ 35.76
33	131731400		Shield,access Area ,cover		Appelez-nous	-
38	3204320		Elbow,exhaust Duct		Appelez-nous	-
42	5304439185		Bracket,marriage ,interior		Appelez-nous	-
43	134305100		Screw,hex Washer Head ,1/4-20 X 1.000 ,special		Appelez-nous	-
48	131731310		Panel,dryer ,bottom Rear		Appelez-nous	-
50	3204329		Cover,safety ,lower Front				$ 40.16
57	131729300		Cover,moisture Sensor		Appelez-nous	-
80	131168200		Screw,10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 14.18
10A	137551800		Housing,blower ,rear   (Replaces: 134608200)			Immediately	$ 107.00
F15	134048800		Thermostat,control				$ 110.57
F25	137292700		Belt,dryer Drive   (Replaces: 134503900)			Immediately	$ 9.34
F28	8581341966035		Motor,dryer Drive ,with Pulley   (Replaces: 134196600)			Immediately	$ 142.51
