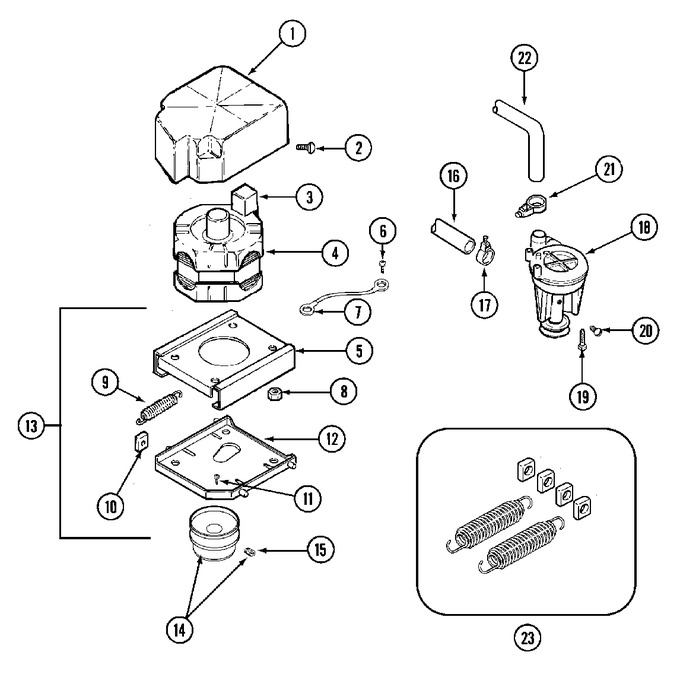

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	215098		Shield, Motor	B2	Appelez-nous	-
002	WPW10346892		Screw   (Replaces: 213121)	B2		Immediately	$ 6.47
003	205132		Switch, Motor Start (production Id Nos. 2-1664-4,	B2	Appelez-nous	-
003	205133		& 2-5463)		Appelez-nous	-
003	206505		2-1664-13, 2-5463-1)		Appelez-nous	-
003	NLA		(prod. Id Nos. 2-1664-8	B2	Appelez-nous	-
004	200803		Green Wire, Motor To Capacitor	B2	Appelez-nous	-
004	12002352		Motor (one Speed - Export)   (Replaces: 202157)	B2			$ 256.15
005	214956		Mount, Motor/upper	B2	Appelez-nous	-
006	WP489128		Screw, Ground Wire   (Replaces: 210186)	B2			$ 9.79
007	901220		Wire, Ground	B2	Appelez-nous	-
008	WP3400029		Keps Nut, Motor Base   (Replaces: Y311426)	B2		Immediately	$ 6.98
009	202718		Tension Springs	B2		Immediately	$ 200.35
010	205000		Glide Kit (4 W/poly Lube)   (Replaces: Y204998)	B2			$ 62.00
011	Y313561		Screw----na	B2			$ 5.27
012	205908		Lower Motor Mount	B2	Appelez-nous	-
013	205999		Motor Mount Assy. Complete	B2			$ 61.84
014	Y202496		Pulley, Motor (w/set Screw)	B2	Appelez-nous	-
015	Y053241		Set Screw, Pulley	B2	Appelez-nous	-
016	215057		Drain Hose	B2	Appelez-nous	-
017	WP285655		Hose Clamp - 1-5/8 Inch   (Replaces: 200461)	B2		Immediately	$ 7.55
018	202203		Pump As Pak	B2	Appelez-nous	-
019	WPY014874		Screw, Hex Hd No.10 X 1/2 Inc   (Replaces: 211880)	B2			$ 6.98
020	WP3390631		Screw, Bearing Insert   (Replaces: Y015408)	B2			$ 7.04
021	WP3367052		Clamp, Hose   (Replaces: 202574)	B2			$ 7.49
022	WPY212989		Hose, Outer Tub   (Replaces: Y212989)	B2		Immediately	$ 46.51
023	205000		Glide & Spring Kit	B2			$ 62.00
