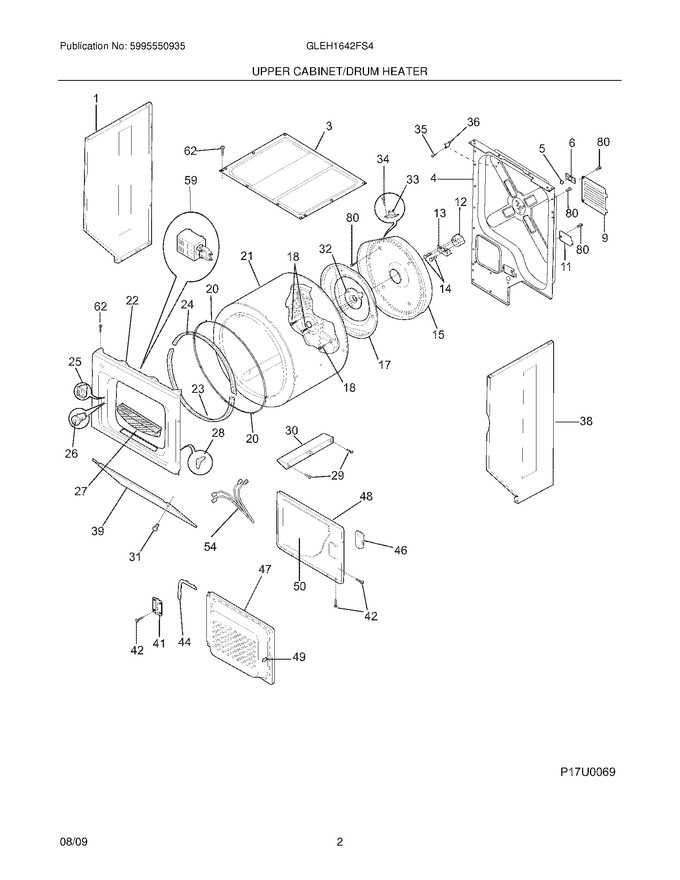

03 - Upper Cabinet/drum Heater
05 - Motor/blower/belt
07 - Control Panel
09 - Lower Cabinet/top
11 - Motor/tub
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131084710 | Panel,white ,left Side |
|
$ 157.51 | |||||
| 3 | 131883301 | Panel,top |
|
$ 276.98 | |||||
| 4 | 134799902 | Panel,rear ,steel ,galvanized |
|
$ 180.25 | |||||
| 5 | 5303281019 | Ball,grounding |
|
$ 16.30 | |||||
| 6 | 5303281020 | Clip,ball ,steel ,flat Nut |
|
$ 17.01 | |||||
| 9 | 137223901 | Panel,motor Access ,rear |
|
- | |||||
| 11 | 3204250 | Cover-terminal Block |
|
$ 34.91 | |||||
| 12 | 131825900 | Bearing-drum Support |
|
Immediately | $ 10.97 | ||||
| 13 | 131724301 | Bracket,bearing Support (Replaces: 131724300) |
|
Immediately | $ 25.66 | ||||
| 14 | 131205400 | Screw,bracket Mtg. ,10-16b X 1.375 ,cr/sq Drive |
|
$ 12.76 | |||||
| 17 | 3204254 | Baffle,heater Shield |
|
$ 129.00 | |||||
| 18 | 131168200 | Screw,10-16ab X 0.375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 20 | 137513300 | Glide-drum (Replaces: 131963900) |
|
Immediately | $ 36.68 | ||||
| 21 | 134122552 | Drum,dryer ,stainless Steel ,service Kit |
|
$ 398.53 | |||||
| 22 | 131636280 | Panel,front ,white ,w/lamp Hole |
|
$ 223.00 | |||||
| 23 | 5303937183 | Seal,felt ,lower (Replaces: 134134700) |
|
Immediately | $ 35.87 | ||||
| 24 | 5303937182 | Seal,felt ,upper (Replaces: 134036400) |
|
Immediately | $ 26.89 | ||||
| 25 | 131658800 | Door Catch,upper |
|
Immediately | $ 68.38 | ||||
| 27 | 5304516871 | Lint Trap (Replaces: 131359600) |
|
Immediately | $ 35.83 | ||||
| 28 | 134440000 | Clip,guide |
|
- | |||||
| 29 | 131382300 | Screw,quadrex Head ,10-14 X 1.00 ,vane Mtg.,special |
|
Immediately | $ 13.46 | ||||
| 30 | 5304453716 | Vane,straight ,gray |
|
- | |||||
| 31 | 131202300 | Screw,10-16ab X 0.625 |
|
Immediately | $ 13.46 | ||||
| 32 | 137088620 | Shaft,drum Support ,ballhitch |
|
- | |||||
| 34 | 131243800 | Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point |
|
$ 10.46 | |||||
| 35 | 131892100 | Screw,6-20b X 0.230 |
|
- | |||||
| 38 | 131084810 | Panel,white ,right Side |
|
$ 94.42 | |||||
| 39 | 137546910 | Panel,access ,white ,front (Replaces: 131084402) |
|
$ 184.19 | |||||
| 41 | 134222900 | Hinge,dryer Door |
|
$ 22.68 | |||||
| 42 | 134156200 | Screw,flat Head ,8-18ab X 0.44 ,quad Drive |
|
Immediately | $ 14.89 | ||||
| 44 | 137551901 | Gasket,door Seal (Replaces: 131129900) |
|
Immediately | $ 41.00 | ||||
| 46 | 131789400 | Handle-door, White |
|
Immediately | $ 63.79 | ||||
| 47 | 134406203 | Panel,inner Door ,white |
|
- | |||||
| 48 | 131789303 | Panel,outer Door ,white |
|
$ 168.47 | |||||
| 49 | 5303207102 | Door Strike (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 50 | 134535300 | Insulator,heat Shield ,outer Door |
|
$ 60.25 | |||||
| 62 | 131302800 | Screw,10-16ab X 0.500 (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 80 | 131168200 | Screw,10-16ab X 0.375 (Replaces: 134547800) |
|
Immediately | $ 14.18 | ||||
| F15 | 131475320 | Heater Assy,w/housing (Replaces: 131475300) |
|
Immediately | $ 133.40 | ||||
| F26 | 134813601 | Switch,door ,rectangle ,white ,with Drum Light (Replaces: 131843101) |
|
Immediately | $ 33.09 | ||||
| F33 | 3204267 | Thermostat-safety |
|
Immediately | $ 53.49 | ||||
| F36 | 134120900 | Thermal Limiter |
|
Immediately | $ 13.21 | ||||
| F54 | 134403200 | Wiring Harness,door Switch ,with Light |
|
- | |||||
| F59 | 131843500 | Lamp Assy,drum Light ,w/mtg Bracket |
|
$ 73.00 | |||||
| NI | 137194800 | Bracket,support-lc |
|
- |
