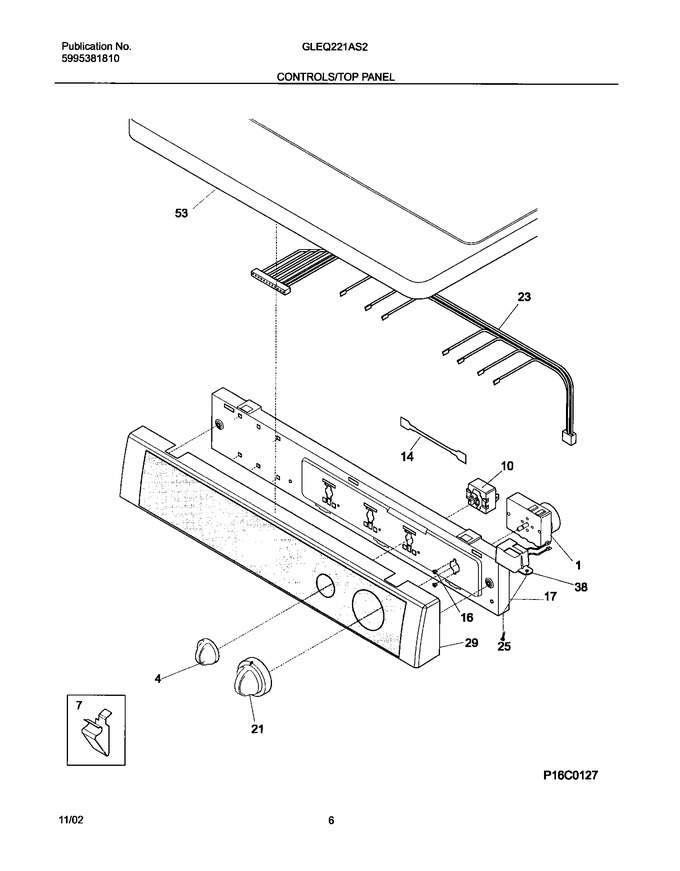

07 - Controls/top Panel


09 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	134042800		Knob,rotary ,white			Immediately	$ 50.61
7	3205821		Clip,top-to-front			Immediately	$ 35.44
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	134064501		Bracket,control Mtg.				$ 76.13
21	131873500		Knob,timer ,white/gray   (Replaces: 134042600)			Immediately	$ 49.62
23	134055300		Wiring Harness,controls		Appelez-nous	-
25	5303015671		Screw,hex Washer Head ,8-18 X 0 .375 ,cup Point		Appelez-nous	-
29	131666946		Console,frame ,white ,w/trim & Tape		Appelez-nous	-
53	134086812		Panel,dryer Top ,white ,stackable				$ 336.42
F1	5303297177		Timer - Dryer				$ 229.64
F10	134398300		Switch,start ,turn Type   (Replaces: 131447800)			Immediately	$ 77.82
F14	3205243		Resistor,power ,4.4 Kilohm ,with Terminal		Appelez-nous	-
F38	5303286537		Buzzer				$ 93.61
NI	134110500		Wiring Harness,main				$ 251.95
