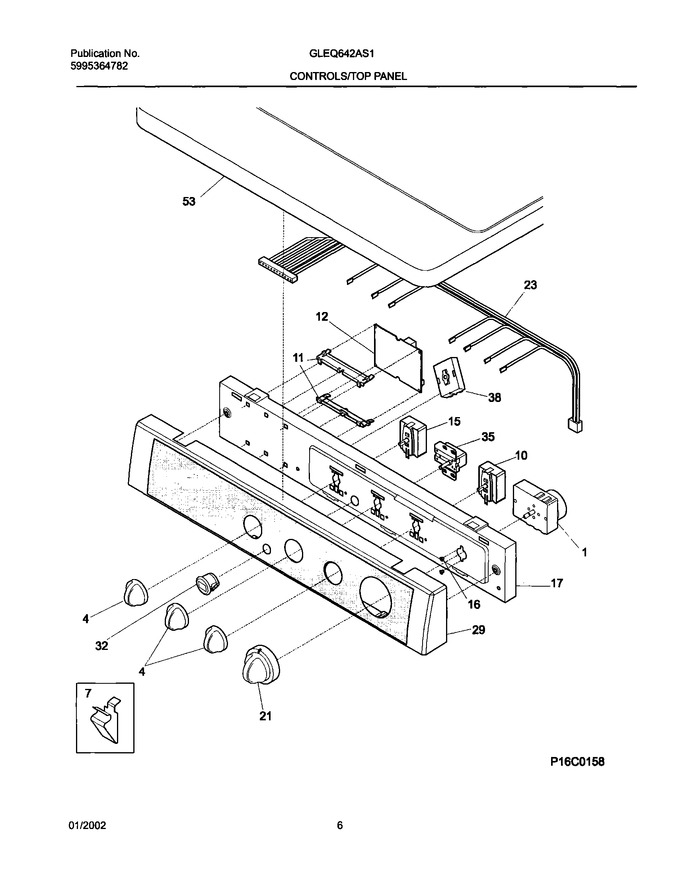

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131930600 | Timer-dryer ``t`` |
|
$ 320.98 | |||||
| 4 | 134042800 | Knob-rot-stk Dry-wht |
|
Immediately | $ 50.61 | ||||
| 7 | 3205821 | Clip-top Panel, To Front Panel |
|
Immediately | $ 35.44 | ||||
| 11 | 131587400 | Bracket-control Board,(2) |
|
$ 44.40 | |||||
| 16 | 134034300 | Screw, Cr Pan Hd, 8-32 X 0.250, Thrd Forming |
|
- | |||||
| 17 | 134064501 | Brkt-cont Mtg-stack Dryer |
|
$ 76.13 | |||||
| 21 | 131873500 | Asmy-knob-stack Dry-wht/dk Gry (Replaces: 134042600) |
|
Immediately | $ 49.62 | ||||
| 29 | 131666943 | Asmy-cons Frame/tape/trim |
|
$ 197.40 | |||||
| 53 | 134086812 | Panel-top Stack Dryer Wht |
|
$ 336.42 | |||||
| F10 | 134398300 | Switch-start (Replaces: 131447800) |
|
Immediately | $ 77.82 | ||||
| F12 | 131620200 | Control Board,moisture Sensor |
|
- | |||||
| F15 | 131641900 | Switch-temperature |
|
- | |||||
| F23 | 134064600 | Harness-cont-trh Elec |
|
- | |||||
| F32 | 134040800 | Switch-round-on/off |
|
$ 65.92 | |||||
| F35 | 131243200 | Switch-extra Rinse/speed |
|
- | |||||
| F38 | 131959200 | Beeper Continuous Low Tone |
|
$ 134.82 | |||||
| NI | 134110500 | Harness-main Stack |
|
$ 251.95 |
