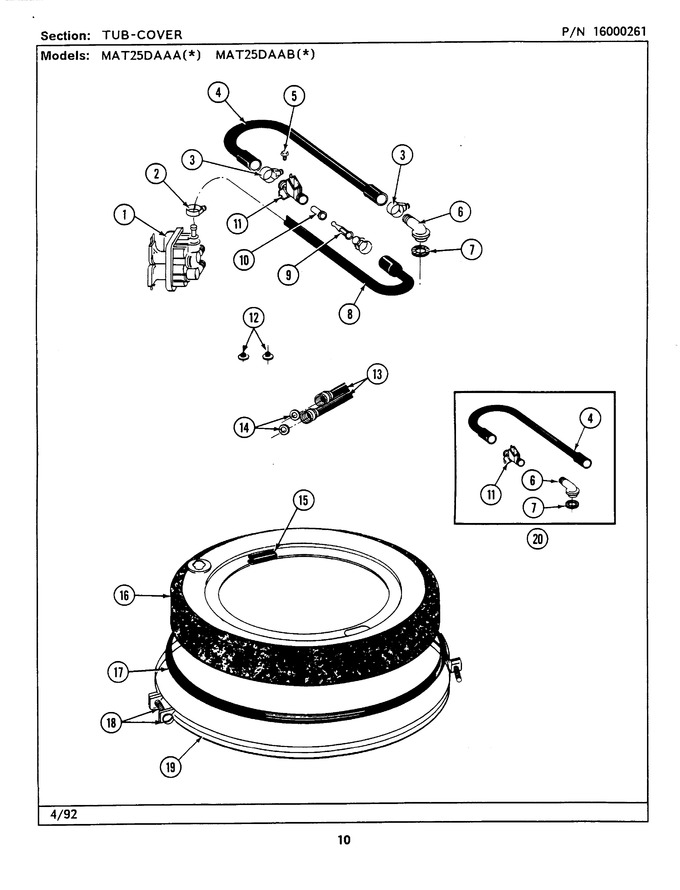

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	205613		Valve, Water   (Replaces: 205614)	A0		Immediately	$ 103.57
002	WP596669		Clamp, Hose   (Replaces: 201575)	A0		Immediately	$ 7.56
003	WP596669		Clamp, Hose   (Replaces: 202515)	A0		Immediately	$ 7.56
004	WPY215234		Hose, Injector Fill   (Replaces: Y215234)	A0			$ 83.54
005	312620		Screw	A0	Appelez-nous	-
006	215235		Tube, Injector	A0			$ 16.14
007	215233		Seal, Injector Tube	A0			$ 5.84
008	WP213013		Hose, Injector   (Replaces: 213013)	A0		Immediately	$ 44.40
009	WP213015		Nozzle, Injector   (Replaces: 213015)	A0		Immediately	$ 7.29
010	WP216201		Valve, Injector   (Replaces: 213016)	A0		Immediately	$ 18.88
011	WP215447		Sleeve, Injector   (Replaces: 215447)	A0		Immediately	$ 7.32
012	200961		Washer, Screen	A0	Appelez-nous	-
013	WP89503		Hose, 5 Ft (w/straight Ends)   (Replaces: 205828)	A0		Immediately	$ 21.68
014	Y013783		Washer	A0			$ 18.72
015	215232		Bumper, Unbalance	A0	Appelez-nous	-
016	206380		Cover, Tub	A0	Appelez-nous	-
017	WP211232		Seal, Tub Cover   (Replaces: 211232)	A0			$ 62.96
018	205529		Nut & Bolt Kit	A0			$ 6.58
019	200846		Clamp - Tub Cover	A0			$ 62.11
020	WP206680		Injector Hose Kit   (Replaces: 206683)	A0		Immediately	$ 76.98
