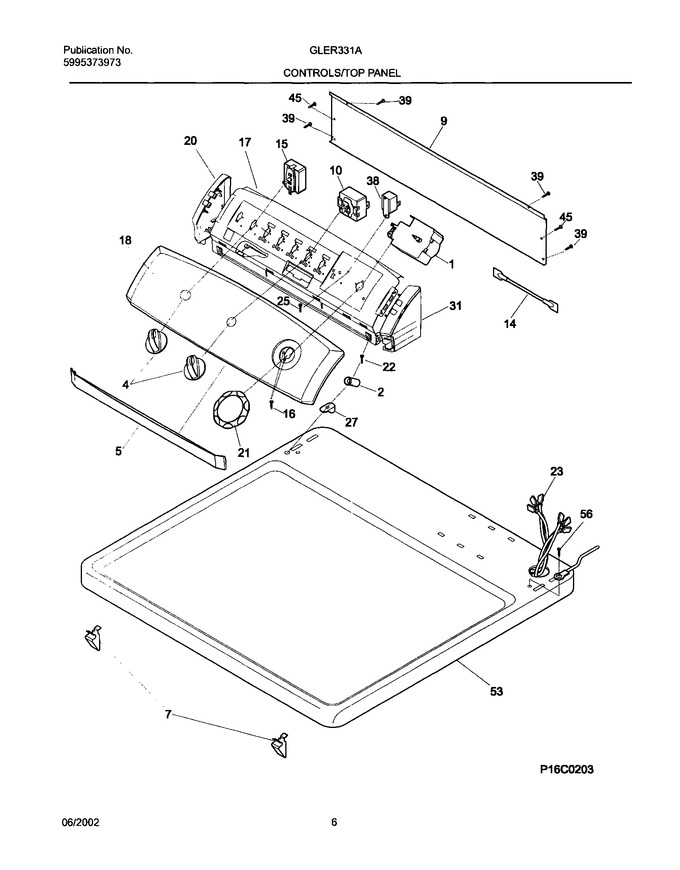

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131719100		Timer-dryer			Immediately	$ 269.37
2	134096100		Spacer-console Mounting				$ 13.55
4	134034901		Knob-rotary-bsq``z``cons Nw2		Appelez-nous	-
5	134019910		Closure-front-bsq``z``console		Appelez-nous	-
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	131992900		Backsheet``z``cons-fsd/taw				$ 72.66
16	134034300		Screw, Cr Pan Hd, 8-32 X 0.250, Thrd Forming		Appelez-nous	-
17	131993010		Brkt-cont Mtg M520		Appelez-nous	-
18	134161800		Trimplate Fde/b1psjzb-2		Appelez-nous	-
20	134019611		End Cap-lh-bsq``z``console		Appelez-nous	-
21	134035501		Asmy-tmr Knob-dryr Bsq/brw Nw2				$ 45.83
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	5303015671		Screw,8-18 X .375		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	134019601		End Cap-rh-bsq``z``cons		Appelez-nous	-
39	131168200		Screw,8-18 X 0.31 ,12			Immediately	$ 14.18
45	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	134086804		Panel-top Fs Bsq		Appelez-nous	-
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,56 ,cr/sq Drive				$ 10.46
F10	134398300		Switch-start   (Replaces: 131447800)			Immediately	$ 77.82
F14	3205243		Resistor-power, 4.4k		Appelez-nous	-
F15	131259200		Switch, Temperature				$ 92.03
F23	134109500		Harness-fsd Wsj/psj Elec				$ 249.22
F38	5303210285		Buzzer				$ 65.78
