01 - Oven, Optional


02 - Latch And Vent


03 - Control Panel, Literature


04 - Oven Door


05 - Oven Liner


06 - Convection Fan


07 - Wiring Harness

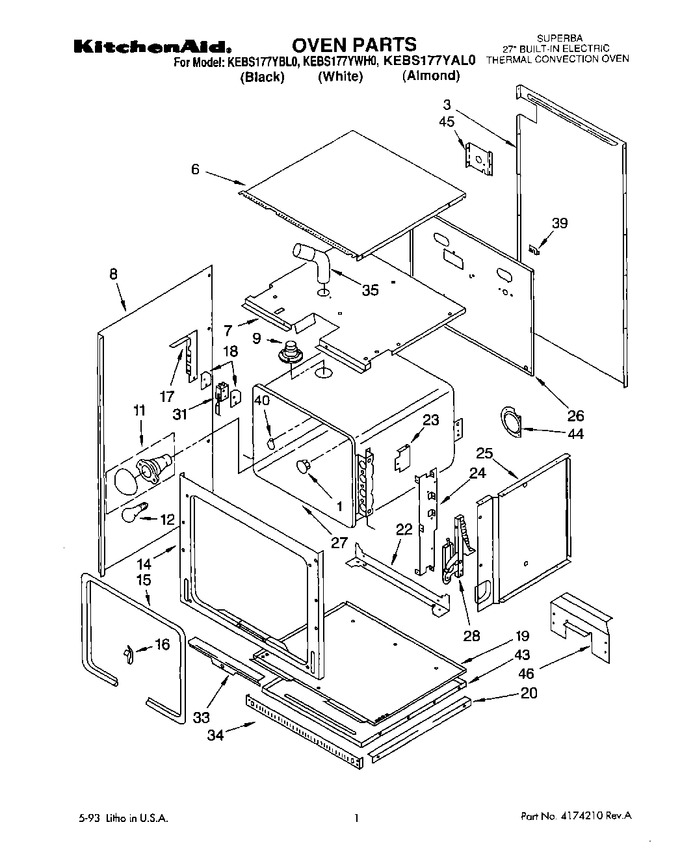

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3185085		Button, Plug		Appelez-nous	-
3	3177738		Cabinet, Back		Appelez-nous	-
3	WP90767		Screw (10)   (Replaces: 300890)			Immediately	$ 7.04
6	WP90767		Screw (5)   (Replaces: 300890)			Immediately	$ 7.04
6	3178142		Cabinet, Top		Appelez-nous	-
7	WP90767		Screw (8)   (Replaces: 300890)			Immediately	$ 7.04
7	3183748		Module, Top		Appelez-nous	-
8	3177441		Side, Cabinet (left Hand)		Appelez-nous	-
8	WP90767		Side, Cabinet (screw (14))   (Replaces: 300890)			Immediately	$ 7.04
8	3177442		Side, Cabinet (right Hand)		Appelez-nous	-
9	3179117		Screw (3)		Appelez-nous	-
9	3181699		Tube, Vent		Appelez-nous	-
11	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
12	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
14	3177682		Frame, Front		Appelez-nous	-
15	3179813		Seal, Door		Appelez-nous	-
16	3179848		Clip, Oven Seal		Appelez-nous	-
17	3177681		Bracket, Switch		Appelez-nous	-
18	3177923		Insulator, Switch		Appelez-nous	-
19	3177621		Bottom, Module		Appelez-nous	-
20	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.04
20	3179220		Rail, Support (2)		Appelez-nous	-
22	3177434		Support, Oven		Appelez-nous	-
22	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.04
23	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.04
23	3179795		Screw (6)		Appelez-nous	-
23	3178612		Shield, Radiation		Appelez-nous	-
24	3177433		Bracket, Hinge		Appelez-nous	-
24	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.04
25	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.04
25	3177572		Side, Module (r.h. & L.h.)		Appelez-nous	-
26	3177561		Back, Module		Appelez-nous	-
26	WP90767		Screw (8)   (Replaces: 300890)			Immediately	$ 7.04
27	3177472		Liner, Oven		Appelez-nous	-
28	3178298		Hinge, Door (2)		Appelez-nous	-
31	4159117		Nut (2)		Appelez-nous	-
31	4173553		Switch, Door		Appelez-nous	-
31	313489		Screw (2)		Appelez-nous	-
31	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.47
33	4168863		Screw		Appelez-nous	-
33	3179587		Retainer, Seal		Appelez-nous	-
33	3179776		Screw (4)		Appelez-nous	-
33	W11233072		Screw (2)   (Replaces: 4159450)			Immediately	$ 12.62
34	3177789		Vent, Lower Trim (white Or Almond Model)		Appelez-nous	-
34	3177787		Vent, Lower Trim (black Model)		Appelez-nous	-
34	4168863		Vent, Lower Trim (screw (2))		Appelez-nous	-
34	3180022		Vent, Lower Trim (screw (4))		Appelez-nous	-
35	3183791		Vent, Tube		Appelez-nous	-
39	4159445		Screw		Appelez-nous	-
39	4168203		Cover, Cap Tube		Appelez-nous	-
40	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
40	4167518		Plate, Cover		Appelez-nous	-
43	3177551		Bottom, Oven		Appelez-nous	-
44	WP3177991		Screw (4)   (Replaces: 3177991)			Immediately	$ 6.47
44	4163883		Cover, Probe		Appelez-nous	-
45	3177545		Bracket, Conduit		Appelez-nous	-
46	242829		18 Ga. 80~c Rating (red)		Appelez-nous	-
46	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
46	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
46	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
46	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
46	261891		Harvest Gold		Appelez-nous	-
46	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
46	285368		Platinum		Appelez-nous	-
46	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
46	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
46	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
46	832985		Rack, Cooking (bi-level)		Appelez-nous	-
46	3171507		Mounting Hardware		Appelez-nous	-
46	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
46	3183752		Bracket, Mounting Control Panel		Appelez-nous	-
46	WP90767		Screw   (Replaces: 300890)			Immediately	$ 7.04
46	3177862		Insulation, Wrap		Appelez-nous	-
46	3177872		Insulation, Back		Appelez-nous	-
46	350806		18 Ga. 80~c Rating (yellow 16 Ga. 80~c Rating)		Appelez-nous	-
46	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
46	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
46	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
46	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
46	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
46	242826		18 Ga. 80~c Rating (white)		Appelez-nous	-
46	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
46	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
46	242831		Wire (14 Ga. 200 C Red)				$ 342.23
46	242832		18 Ga. 80~c Rating (yellow 12 Ga. 150~c Rating)		Appelez-nous	-
46	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
46	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
46	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
46	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
46	WP261869		Citrine White   (Replaces: 261869)				$ 23.85
46	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
46	261890		Harvest Gold		Appelez-nous	-
46	285365		Toast		Appelez-nous	-
46	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
46	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)			Immediately	$ 51.34
46	350942		Primer				$ 80.69
46	350941		Leveler (primer)		Appelez-nous	-
46	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
46	978883		Almond		Appelez-nous	-
