SELECT A DIAGRAM

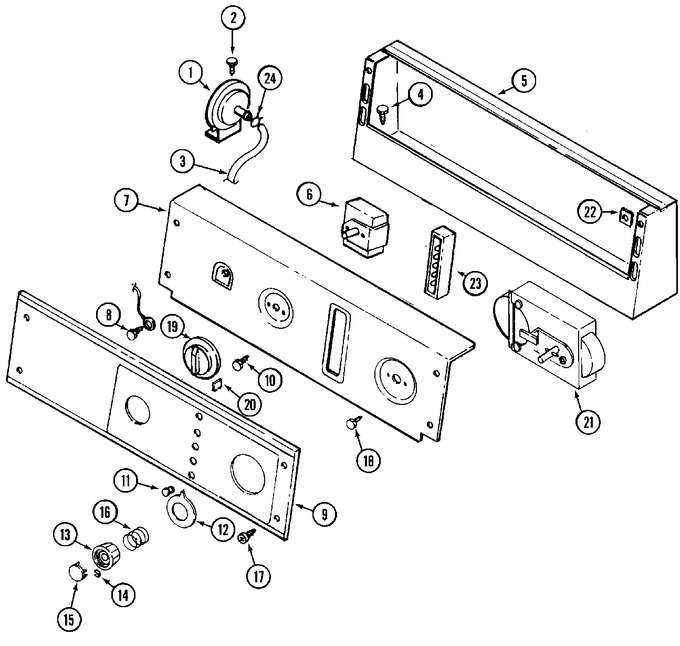

01 - Control Panel


02 - Top


03 - Cabinet


04 - Tub Cover


05 - Tub


06 - Transmission


07 - Base


08 - Base/brake & Rotor


09 - Motor & Pump


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	203970		Switch	B2			$ 72.19
002	WP90767		Screw   (Replaces: 211294)	B2		Immediately	$ 7.04
003	WP22001619		Air Dome & Tube   (Replaces: 212942)	B2			$ 75.73
004	WP90767		Screw   (Replaces: 212276)	B2		Immediately	$ 7.04
005	NLA		Console (wht)	B2	Appelez-nous	-
006	COMM PART		Switch, Temp.   (Replaces: 205353)	B2	Appelez-nous	-
007	215571		Backup Plate (wht)	B2	Appelez-nous	-
008	Y314322		Screw, No.8-32 X 3/8 Inch	B2	Appelez-nous	-
009	206928		Control Panel W/lens	B2	Appelez-nous	-
010	WP488234		Screw   (Replaces: Y313588)	B2			$ 6.07
011	WP215564		Lens, Indicator (amber)   (Replaces: 215564)	B2		Immediately	$ 7.14
012	206893		Skirt, Timer Dial	B2	Appelez-nous	-
013	206892		Control Knob	B2			$ 9.04
014	211605		Retainer, Timer Knob	B2	Appelez-nous	-
015	WPW10133501		Cap, Timer Knob   (Replaces: 314723)	B2			$ 54.76
016	211065		Spring, Timer Knob	B2			$ 5.70
017	WP1163283		Screw, No.8 X 1/2 Inch   (Replaces: 212277)	B2			$ 6.47
018	WP3400014		Screw, Timer   (Replaces: 213966)	B2			$ 6.98
019	206894		Knob W/bump	B2	Appelez-nous	-
020	215561		Lid Bumper	B2	Appelez-nous	-
021	NLA		Timer	B2	Appelez-nous	-
022	215003		Fastener	B2	Appelez-nous	-
023	206881		Indicator, 5 Light 115v	B2			$ 96.51
024	WP596669		Clamp,water Level Swtch Tube   (Replaces: 410296)	B2		Immediately	$ 7.56

    View Diagram in Separate Window       Print Part List
