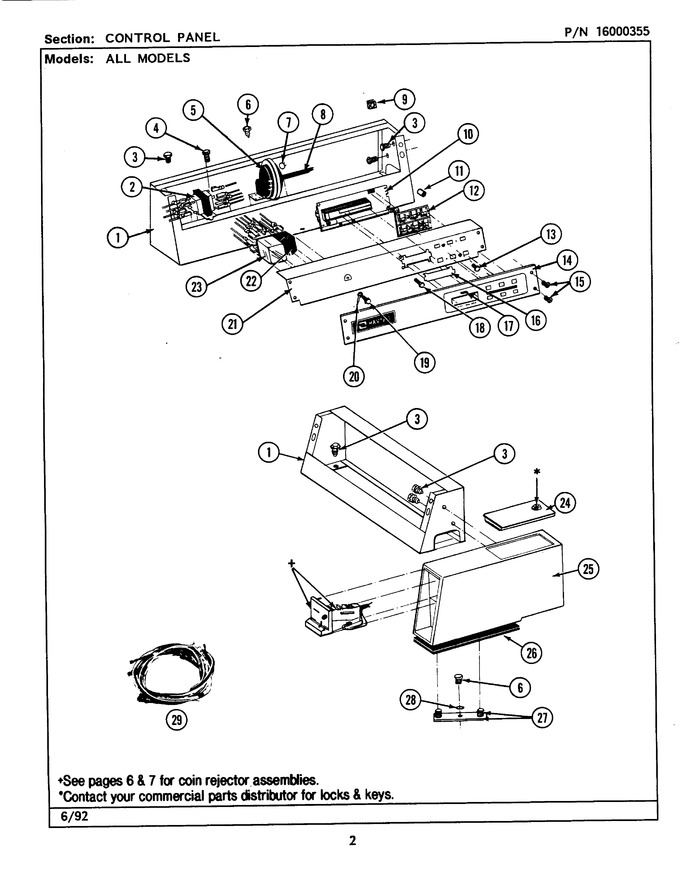

01 - Control Panel
02 - Top
03 - Control Center
04 - Cabinet
05 - Tub
06 - Tub (inner & Outer)
07 - Transmission
08 - Base
09 - Base/brake & Rotor
10 - Motor & Pump
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 206780 | Cover, Control Assy. (wht) | A1 |
|
- | ||||
| 001 | 206780L | (alm) | A1 |
|
- | ||||
| 001 | NLA | (h. Wheat) | A1 |
|
- | ||||
| 002 | 207766 | Transformer | A1 |
|
- | ||||
| 003 | WP90767 | Screw (Replaces: 212276) | A1 |
|
Immediately | $ 7.04 | |||
| 004 | WP90767 | Screw, Transformer (Replaces: Y313559) | A1 |
|
Immediately | $ 7.04 | |||
| 005 | 203263 | Switch, Pressure | A1 |
|
- | ||||
| 006 | WP90767 | Screw (Replaces: 211294) | A1 |
|
Immediately | $ 7.04 | |||
| 007 | WP596669 | Clamp, Corbin (Replaces: 410296) | A1 |
|
Immediately | $ 7.56 | |||
| 008 | WP22001619 | Air Dome & Tube (Replaces: 212942) | A1 |
|
$ 75.73 | ||||
| 009 | 215003 | Fastener | A1 |
|
- | ||||
| 010 | 206828 | Battery | A1 |
|
- | ||||
| 010 | M0282005 | Locknut (Replaces: 912077) | A1 |
|
$ 7.07 | ||||
| 010 | NLA | Circuit Board Assy | A1 |
|
- | ||||
| 011 | Y215513 | Spacer Circuit Board | A1 |
|
- | ||||
| 012 | WPW10135389 | Plate, Backup W/swt Assy. (Replaces: 206808) | A1 |
|
$ 125.66 | ||||
| 012 | WPW10424308 | Pushbutton (Replaces: 215517) | A1 |
|
Immediately | $ 18.38 | |||
| 013 | W10756178 | Screw, Back-up Plate (Replaces: 215527) | A1 |
|
$ 5.39 | ||||
| 014 | 215519 | Panel, Control | A1 |
|
- | ||||
| 015 | WPW10131119 | Screw, Torx Control Panel (Replaces: 215506) | A1 |
|
$ 6.26 | ||||
| 016 | 215515 | Cover, Display | A1 |
|
- | ||||
| 017 | 214610 | Bumper, Lid | A1 |
|
- | ||||
| 018 | 215526 | Screw, Back-up Plate | A1 |
|
- | ||||
| 019 | Y314322 | Screw, Ground Wire | A1 |
|
- | ||||
| 020 | 205810 | Wire, Ground | A1 |
|
- | ||||
| 021 | 206825 | Bracket, Back (wht) | A1 |
|
- | ||||
| 021 | NLA | (alm) | A1 |
|
- | ||||
| 022 | 206824 | Relay, Motor Run (24 Volt) | A1 |
|
- | ||||
| 023 | 206421 | Relay, Motor Reversing (24 V) | A1 |
|
- | ||||
| 023 | 212949 | Screw, Relay Bracket | A1 |
|
- | ||||
| 024 | 203188 | Door, Access (wht) | A1 |
|
- | ||||
| 024 | 203188L | (alm) | A1 |
|
- | ||||
| 024 | 203188M | (h. Wheat) | A1 |
|
- | ||||
| 025 | 207940 | Case, Control Center (wht) | A1 |
|
- | ||||
| 025 | 207940L | (alm) | A1 |
|
- | ||||
| 025 | NLA | (h. Wheat) | A1 |
|
- | ||||
| 026 | 214660 | Gasket, Control Cover | A1 |
|
- | ||||
| 027 | NLA | Strap, Mtg. Control Cover | A1 |
|
- | ||||
| 028 | 910309 | Washer | A1 |
|
- | ||||
| 029 | NLA | Harness, Main Wire | A1 |
|
- |
