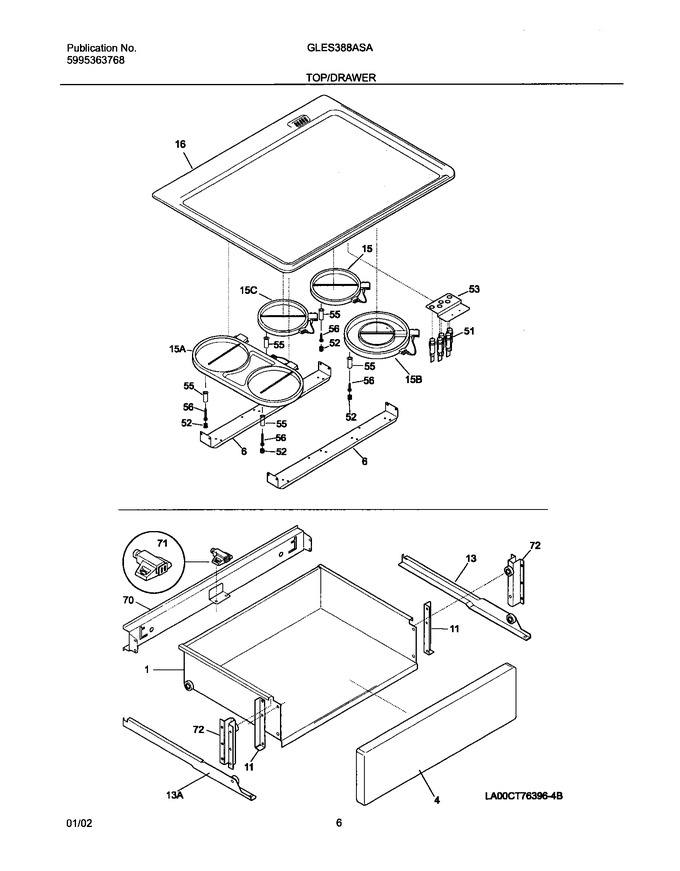

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 5303310500)			Immediately	$ 143.39
4	318134011		Panel,drawer ,white ,front		Appelez-nous	-
6	318111103		Support,element ,(2)		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
16	318079552		Main Top,glass ,white				$ 740.09
52	5303317177		Spring-element Mtg				$ 12.74
53	318125931		Bracket,indicator Light ,hot Surface		Appelez-nous	-
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
70	5303311143		Bracket,slide ,rear		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
13A	5303311130		Channel,drawer ,lh		Appelez-nous	-
F15	318198817		Element,surface ,6`` ,1200 W ,radiant   (Replaces: 316010205)			Immediately	$ 192.78
F15A	318258201		Element,bridge   (Replaces: 318177900)			Immediately	$ 480.54
F15B	316555800		Element,dual ,9``/6`` ,surface ,2100w/700w,radiant   (Replaces: 316224300)			Immediately	$ 138.90
F15C	316098202		Element,warmer Zone ,100w				$ 473.08
F51	318044820		Light,indicator ,red		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
