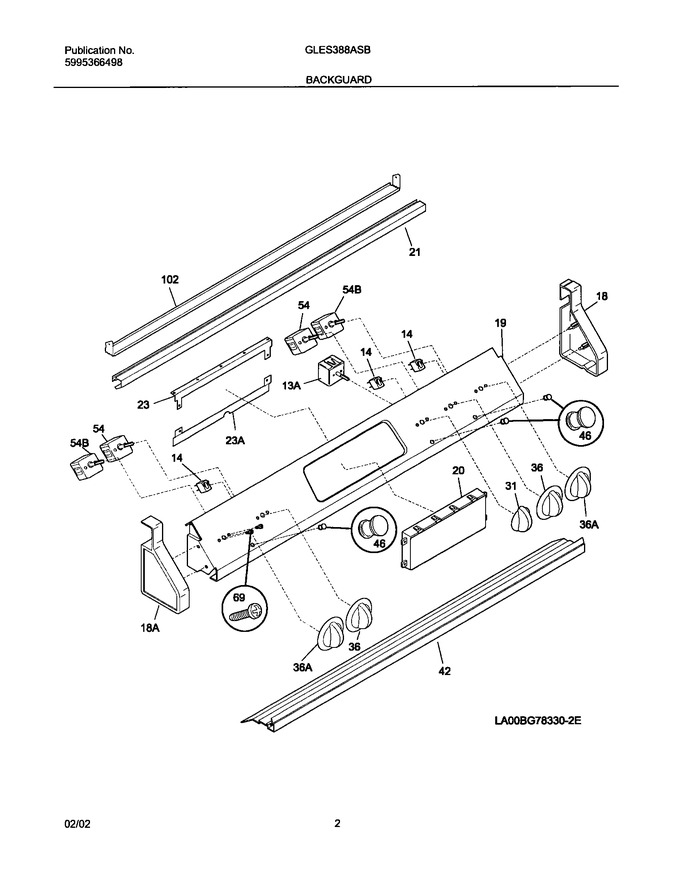

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5303304668		End Cap, White, Rh		Appelez-nous	-
19	318182917		Panel,control Mtg. ,white		Appelez-nous	-
21	318027804		Trim-backguard,white ,top				$ 135.56
23	318015042		Bracket,clock Mtg ,upper		Appelez-nous	-
31	318197600		Knob,warmer ,white				$ 30.45
36	318196633		Knob,control ,white				$ 62.95
42	318106924		Trim,backguard ,white ,bottom				$ 132.04
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 22.91
69	5303288565		Screw,switch Mtg. ,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
102	318055601		Bracket-mounting				$ 34.13
18A	5303304671		End Cap, White, Lh		Appelez-nous	-
23A	318015043		Bracket,clock Mtg ,lower		Appelez-nous	-
36A	318196630		Knob,dual Control ,white				$ 58.28
F13A	5304508926		Switch,infinite ,drawer/zone ,warmer   (Replaces: 316095500)			Immediately	$ 84.18
F14	318076700		Light,indicator ,125v		Appelez-nous	-
F20	318183621		Clock/timer,electronic ,white		Appelez-nous	-
F54	318120501		Switch-surface Unit				$ 244.13
F54B	318191002		Switch,infinite ,dual			Immediately	$ 74.75
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	3201861		Screw,6 X 0.375				$ 0.76
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
