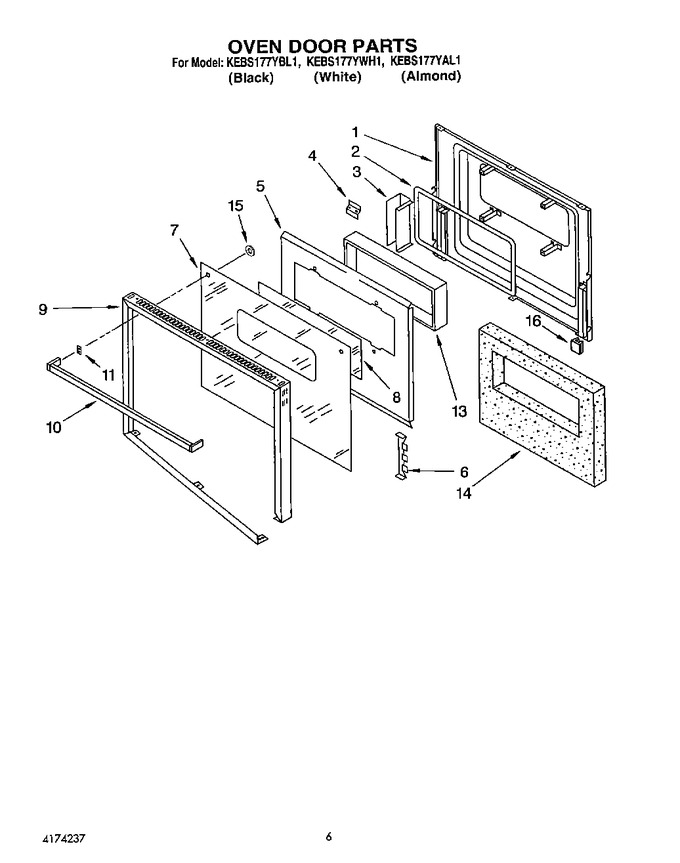

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3177599 | Liner, Door |
|
- | |||||
| 2 | 3178584 | Gasket, Window |
|
- | |||||
| 3 | 3179693 | Spacer, Window |
|
- | |||||
| 4 | 3177831 | Latch, Strike |
|
- | |||||
| 4 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 5 | 3177718 | Insulation, Retainer |
|
- | |||||
| 5 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 6 | 4163855 | Bracket, Glass Mounting (2) |
|
- | |||||
| 6 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 7 | 3181548 | Glass, Door (black) |
|
- | |||||
| 7 | 3181550 | Glass, Door (white) |
|
- | |||||
| 7 | 3181552 | Glass, Door (almond) |
|
- | |||||
| 8 | 4164243 | Glass, Reflective |
|
- | |||||
| 9 | 3181402 | Frame, Door |
|
- | |||||
| 10 | 3182165 | Handle, Door (black) |
|
- | |||||
| 10 | 3181637 | Handle, Door (screw (2)) |
|
- | |||||
| 10 | 3182171 | Handle, Door (almond Model) |
|
- | |||||
| 10 | 3182168 | Handle, Door (white) |
|
- | |||||
| 11 | 3182138 | Spacer (2) |
|
- | |||||
| 13 | 4164235 | Window Package |
|
- | |||||
| 14 | 3180094 | Insulation, Door |
|
- | |||||
| 14 | 3178001 | Screw, Black (2) |
|
- | |||||
| 14 | 4168863 | Screw (6) |
|
- | |||||
| 15 | 3181651 | Bushing |
|
- | |||||
| 16 | 3181701 | Bumper, Door Glass |
|
- |
