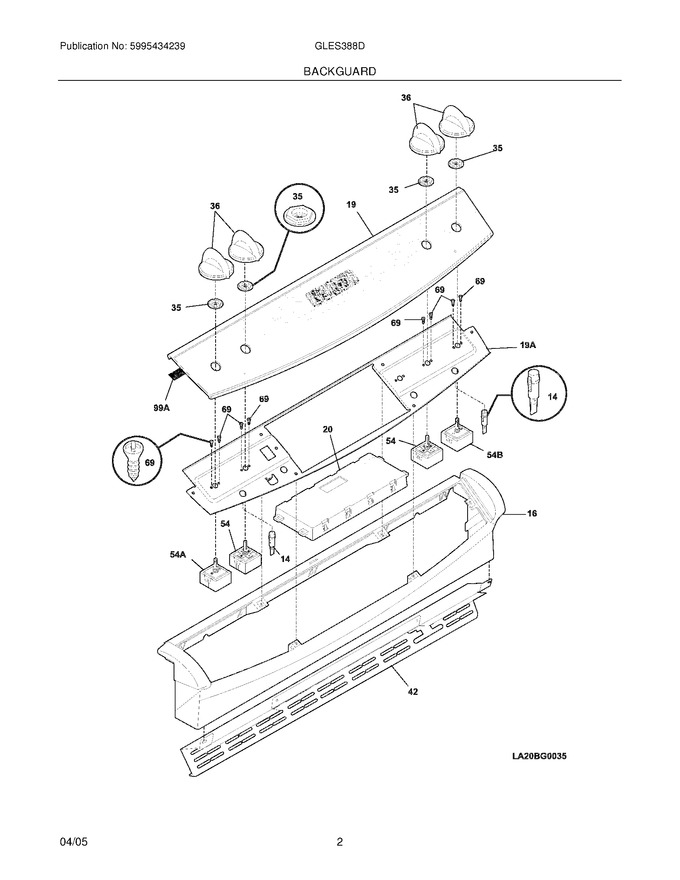

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318235000		Console,assy. ,white ,w/ End Caps		Appelez-nous	-
19	318239704		Panel,control Assy. ,white ,w/ Membrane		Appelez-nous	-
35	318183101		Support,glass ,white ,(4)				$ 14.07
36	316223028		Knob,control ,white   (Replaces: 318229300)				$ 60.67
42	318224301		Trim,vent ,black ,bottom		Appelez-nous	-
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
19A	318224403		Panel,control Mtg.				$ 199.61
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F14	318044831		Light,indicator ,125v ,(2)   (Replaces: 318044825)				$ 16.69
F20	316272202		Clock/timer,electronic ,es500/es550				$ 423.89
F54	903136-9010		Switch,surface Unit ,single   (Replaces: 318220080)			Immediately	$ 107.42
F54A	903136-9020		Switch,surface Unit ,large   (Replaces: 318220081)			Immediately	$ 124.39
F54B	318191023		Switch,infinite ,dual			Immediately	$ 70.64
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17

    View Diagram in Separate Window       Print Part List
