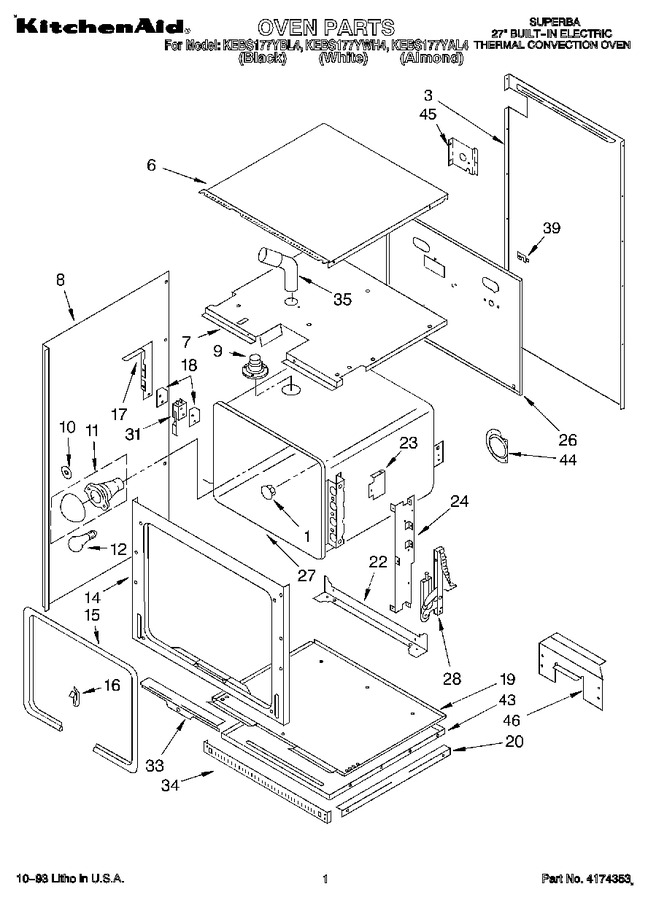

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3185085 | Button, Plug |
|
- | |||||
| 3 | 3177738 | Cabinet, Back |
|
- | |||||
| 3 | 3185647 | Screw |
|
- | |||||
| 6 | 3185647 | Screw |
|
- | |||||
| 6 | 3178143 | Cabinet, Top |
|
- | |||||
| 7 | 3185647 | Screw |
|
- | |||||
| 7 | 3183748 | Module, Top |
|
- | |||||
| 8 | 3177441 | Side, Cabinet (left Hand) |
|
- | |||||
| 8 | 3185647 | Side, Cabinet (screw) |
|
- | |||||
| 8 | 3177442 | Side, Cabinet (right Hand) |
|
- | |||||
| 9 | 3185648 | Screw |
|
- | |||||
| 9 | 3181699 | Tube, Vent |
|
- | |||||
| 10 | WP3184533 | Gasket, Light (Replaces: 3184533) |
|
Immediately | $ 7.73 | ||||
| 11 | W11594027 | Oven Light Assy. (Replaces: 3150505) |
|
Immediately | $ 78.31 | ||||
| 12 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 14 | 3185860 | Frame, Front |
|
- | |||||
| 15 | 3179813 | Seal, Door |
|
- | |||||
| 16 | 3179848 | Clip, Oven Seal |
|
- | |||||
| 17 | 3177681 | Bracket, Switch |
|
- | |||||
| 18 | 3177923 | Insulator, Switch |
|
- | |||||
| 19 | 3177621 | Bottom, Module |
|
- | |||||
| 20 | 3185647 | Screw |
|
- | |||||
| 20 | 3179220 | Rail, Support (2) |
|
- | |||||
| 22 | 3177434 | Support, Oven |
|
- | |||||
| 22 | 3185647 | Screw |
|
- | |||||
| 23 | 3179795 | Screw (6) |
|
- | |||||
| 23 | 3185647 | Screw |
|
- | |||||
| 23 | 3178612 | Shield, Radiation |
|
- | |||||
| 24 | 3177433 | Bracket, Hinge |
|
- | |||||
| 24 | 3185647 | Screw |
|
- | |||||
| 26 | 3185647 | Screw |
|
- | |||||
| 26 | 3177561 | Back, Module |
|
- | |||||
| 27 | 3185563 | Liner, Oven |
|
- | |||||
| 28 | 3178298 | Hinge, Door (2) |
|
- | |||||
| 31 | WP3177991 | Screw (2) (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 31 | 4173553 | Switch, Door |
|
- | |||||
| 31 | 4159117 | Nut (2) |
|
- | |||||
| 31 | 313489 | Screw (2) |
|
- | |||||
| 33 | 3179587 | Retainer, Seal |
|
- | |||||
| 33 | 307831 | Screw |
|
- | |||||
| 34 | 3180022 | Vent, Lower Trim (screw (4)) |
|
- | |||||
| 34 | 3177789 | Vent, Lower Trim (white Or Almond Model) |
|
- | |||||
| 34 | 3177787 | Vent, Lower Trim (black Model) |
|
- | |||||
| 34 | 4168863 | Vent, Lower Trim (screw (2)) |
|
- | |||||
| 35 | 3183791 | Vent, Tube |
|
- | |||||
| 39 | 4159445 | Screw |
|
- | |||||
| 39 | 4168203 | Cover, Cap Tube |
|
- | |||||
| 43 | 3177551 | Bottom, Oven |
|
- | |||||
| 44 | WP3177991 | Screw (4) (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 44 | 4163883 | Cover, Probe |
|
- | |||||
| 45 | 3177545 | Bracket, Conduit |
|
- | |||||
| 46 | 3171507 | Mounting Hardware |
|
- | |||||
| 46 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 46 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 46 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 46 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 46 | 978883 | Almond |
|
- | |||||
| 46 | 261891 | Harvest Gold |
|
- | |||||
| 46 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 46 | 285368 | Platinum |
|
- | |||||
| 46 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 46 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 46 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 46 | 832985 | Rack, Cooking (bi-level) |
|
- | |||||
| 46 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 46 | 3183752 | Bracket, Mounting Control Panel |
|
- | |||||
| 46 | 3185647 | Screw |
|
- | |||||
| 46 | 3185551 | Insulation, Wrap |
|
- | |||||
| 46 | 3177872 | Insulation, Back |
|
- | |||||
| 46 | 350806 | 18 Ga. 80~c Rating (yellow) |
|
- | |||||
| 46 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 46 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 46 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 46 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 46 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 46 | 242826 | White |
|
- | |||||
| 46 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 46 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 46 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 46 | 242832 | Yellow 12 Ga. 150~c Rating |
|
- | |||||
| 46 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 46 | 242829 | Red |
|
- | |||||
| 46 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 46 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 46 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | |||||
| 46 | WP261869 | Citrine White (Replaces: 261869) |
|
$ 23.85 | |||||
| 46 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 46 | 261890 | Harvest Gold |
|
- | |||||
| 46 | 285365 | Toast |
|
- | |||||
| 46 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 46 | 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
Immediately | $ 51.34 | ||||
| 46 | 350942 | Primer |
|
$ 80.69 | |||||
| 46 | 350941 | Leveler (primer) |
|
- | |||||
| 46 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 |
