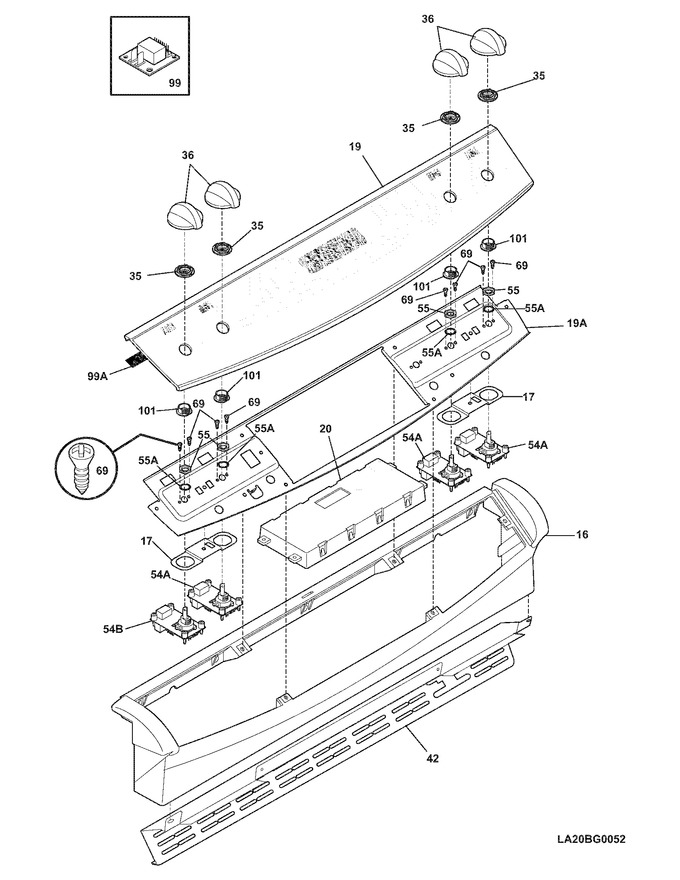

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299102		Console,assy. ,black				$ 494.96
17	318306900		Bracket,bushing ,(2)		Appelez-nous	-
19	318313802		Control Panel Assembly,black ,w/touch Pad		Appelez-nous	-
35	318233720		Retainer,control Panel ,black				$ 20.48
36	316223021		Knob,control ,black				$ 32.24
42	318298001		Trim,vent ,black ,upper				$ 59.01
55	316247700		Nut,hex Control Mtg				$ 18.20
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
99	316435702		Board,power Supply				$ 101.38
101	318233400		Bushing,retainer				$ 43.21
19A	318224405		Panel,control Mtg.		Appelez-nous	-
55A	316247800		Washer-lock,control Mtg				$ 18.20
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F20	316418735		Clock/timer,electronic ,es510				$ 402.10
F54A	316441801		Control,electronic ,dual Element ,(3) ,w/potentiometer			Immediately	$ 326.73
F54B	316441804		Control,electronic ,left Front ,dual Element,w/potentiometer				$ 256.73
NI	5304453707		Screw,control Mtg.			Immediately	$ 15.92
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5304447071		Clip,console ,(2)		Appelez-nous	-
NI	318228813		Harness,wiring ,main ,backguard		Appelez-nous	-
NI	318083021		Harness,wiring ,to Transformer ,interface				$ 118.70
NI	318224813		Harness,wiring ,timer		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
