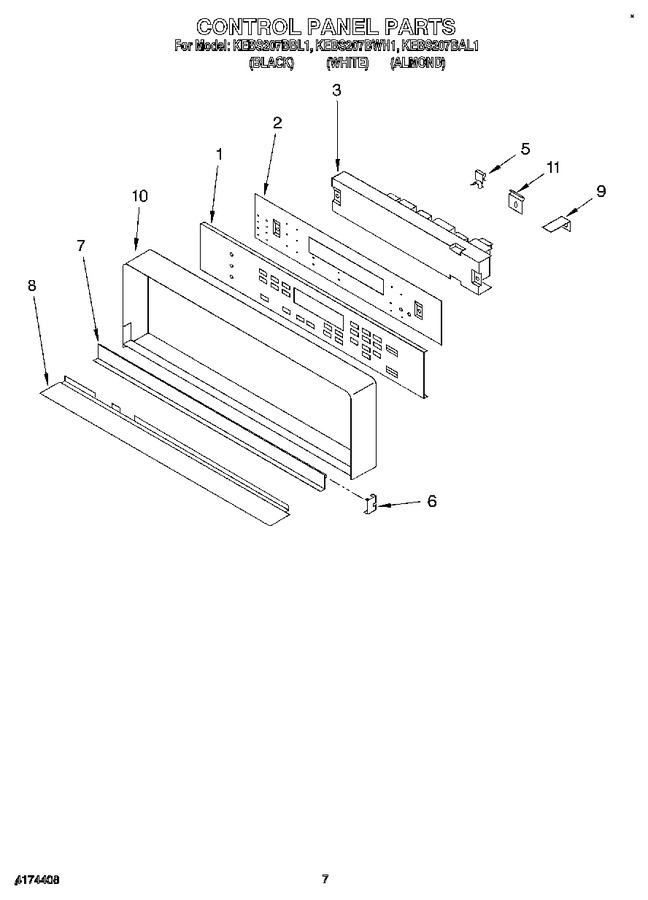

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183529		Membrane, Switch (black)		Appelez-nous	-
1	3183530		Membrane, Switch (white)		Appelez-nous	-
1	3183531		Membrane, Switch (almond)		Appelez-nous	-
2	3181889		Bracket, Mounting Switch Membrane		Appelez-nous	-
3	3181705CP		Microcomputer   (Replaces: 3181705)		Appelez-nous	-
3	3179117		Screw		Appelez-nous	-
5	3182985		Clip, Retainer		Appelez-nous	-
6	3182162		Trim, Door		Appelez-nous	-
7	3182155		Door, Latch Handle (white)		Appelez-nous	-
7	3182158		Door, Latch Handle (almond)		Appelez-nous	-
7	3182152		Door, Latch Handle (black)		Appelez-nous	-
8	3183703		Trim, Panel		Appelez-nous	-
8	3148443		Screw		Appelez-nous	-
9	3185424		Bracket		Appelez-nous	-
9	3182939		Screw		Appelez-nous	-
10	3187948		Frame, Control Panel (black Model)		Appelez-nous	-
10	3187950		Frame, Control Panel (almond Model)		Appelez-nous	-
10	3187949		Frame, Control Panel (white Model)		Appelez-nous	-
11	3184567		Clip, Control Frame		Appelez-nous	-
	LIT3188199		Use & Care Guide		Appelez-nous	-
	LIT3182137		Installation Instructions		Appelez-nous	-
	LIT3185962		Tech Sheet		Appelez-nous	-
	LIT3183739		Guide-quickset		Appelez-nous	-
	LIT3183987		Guide, Auto Set		Appelez-nous	-
	LIT3150693		Cookbook		Appelez-nous	-
