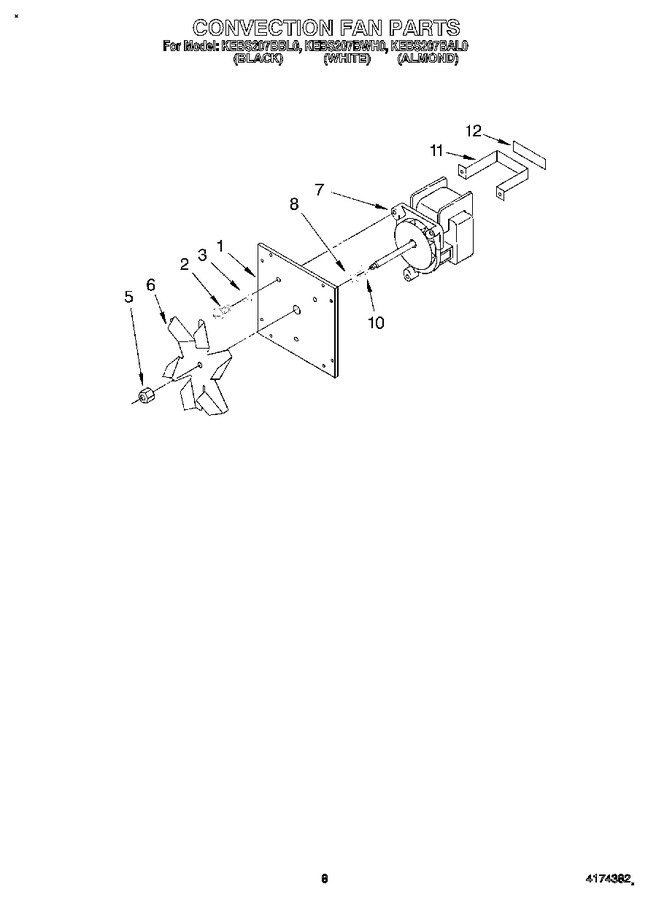

05 - Convection Fan
06 - Upper And Lower Oven Door
07 - Internal Oven
08 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3182045 | Mounting Plate |
|
- | |||||
| 2 | 4173193 | Screw (3) |
|
- | |||||
| 3 | 4173194 | Lockwasher (3) |
|
- | |||||
| 5 | 4173237 | Nut (left Hand) |
|
- | |||||
| 6 | 4173236 | Fan |
|
- | |||||
| 7 | 3183220 | Motor |
|
- | |||||
| 8 | 4173238 | E-ring |
|
- | |||||
| 10 | 4173230 | Flat Washer |
|
- | |||||
| 11 | 3181750 | Bracket, Guard |
|
- | |||||
| 12 | 3179790 | Gasket, Foam |
|
- |
