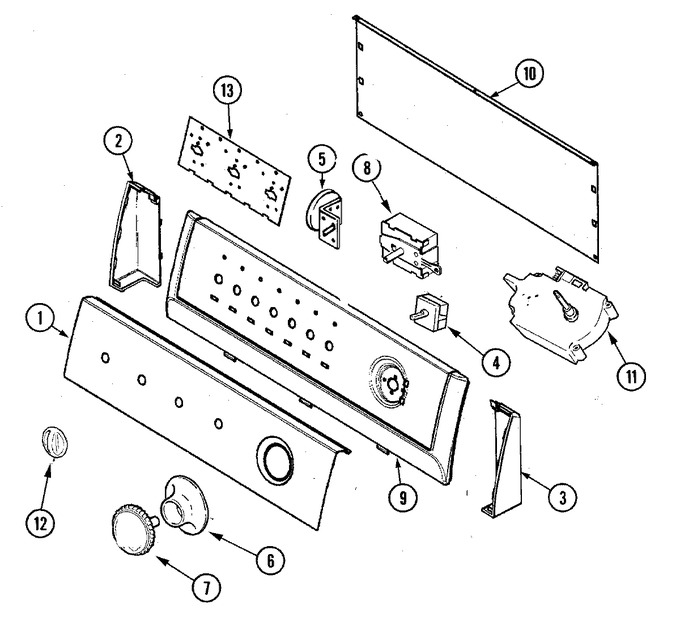

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y2201386		Panel, Control (wht)	10	Appelez-nous	-
2	21001641		End Cap (lt-wht)	10	Appelez-nous	-
2	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
3	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
3	21001630		End Cap (rt-wht)	10	Appelez-nous	-
4	21001491		Switch, Water Temperature	10	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
5	21002031		Switch, Water Level (pressure)	10			$ 11.17
5	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
6	21001600		Skirt, Timer (wht)	10			$ 88.84
7	WP21001972		Knob, Timer (wht)   (Replaces: 21001594)	10			$ 48.17
8	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
8	21001673		Switch, Speed 4 Pos Rotary	10	Appelez-nous	-
9	31001743		Frame (wht) / Console	10	Appelez-nous	-
10	21001527		Shield, Rear (back Panel)	10	Appelez-nous	-
11	21001701		Timer	10	Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
12	21001525		Knob, Selector (wht)	10	Appelez-nous	-
13	21001458		Holder, Fuse	10	Appelez-nous	-
13	21001457		Fuse	10			$ 22.46
13	21001517		Shield, Control (1 Pos.)	10			$ 4.83
