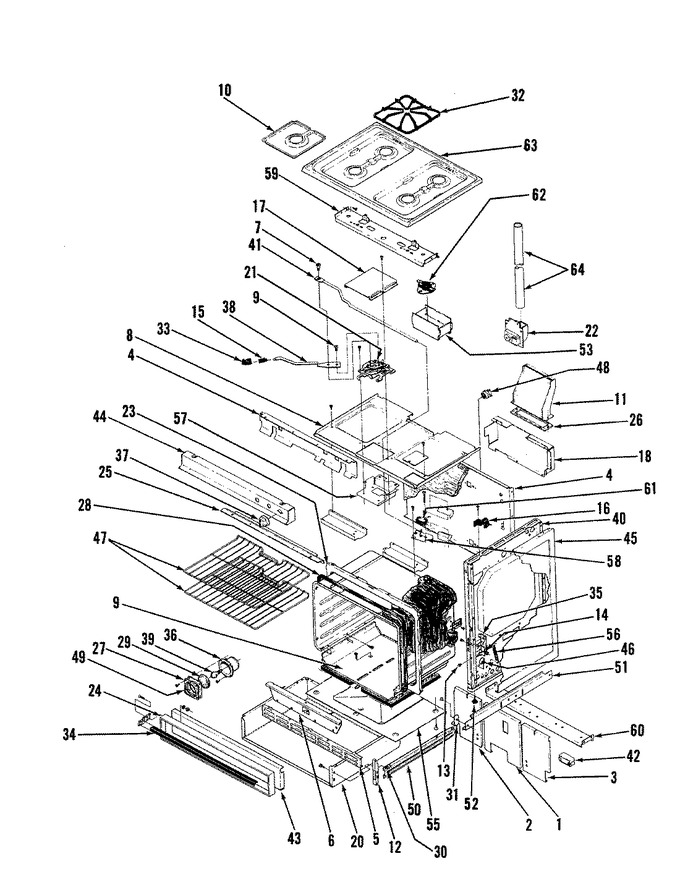

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F062-45 | Back, Br Center | 01 |
|
- | ||||
| 2 | 4002F060-45 | Back, Br Left | 01 |
|
- | ||||
| 3 | 7401P015-60 | Block, Terminal | 01 |
|
- | ||||
| 4 | 4002F068-20 | Back, Main | 01 |
|
- | ||||
| 5 | 3601F116-45 | Baffle | 01 |
|
- | ||||
| 6 | 7401P011-60 | Block, Disconnect | 01 |
|
- | ||||
| 6 | 3601W125-12 | Baffle, Ovn Front | 01 |
|
- | ||||
| 6 | 7401P015-60 | Block, Terminal | 01 |
|
- | ||||
| 7 | 7116P002-60 | Bolt, Door Lock | 01 |
|
- | ||||
| 8 | 4011J075 | Bottom, Burner Box | 01 |
|
- | ||||
| 9 | 2205F012-13 | Bottom, Oven | 01 |
|
- | ||||
| 10 | 1430283 | Drip Tray Kit | 01 |
|
$ 95.86 | ||||
| 10 | 1430283 | Bowl, Drip Tray (Replaces: 7725P004-60) | 01 |
|
$ 95.86 | ||||
| 11 | 4006W026-13 | Box, Flue | 01 |
|
- | ||||
| 11 | 3801F093-51 | Bracket | 01 |
|
- | ||||
| 11 | 0284303 | Bracket | 01 |
|
- | ||||
| 12 | 3801F115-51 | Bracket, Drawer | 01 |
|
- | ||||
| 12 | 3801F101-80 | Bracket, Tie Down | 01 |
|
- | ||||
| 12 | 0284306 | Bracket | 01 |
|
- | ||||
| 12 | 0284315 | Bracket | 01 |
|
- | ||||
| 12 | 0284316 | Bracket | 01 |
|
- | ||||
| 13 | Y0315206 | Clamp | 01 |
|
- | ||||
| 13 | 1784202 | Bumper | 01 |
|
- | ||||
| 14 | 7112P019-60 | Clip, Hinge Pin | 01 |
|
- | ||||
| 15 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- | ||||
| 16 | 7112P030-60 | Clip, Top Retainer | 01 |
|
- | ||||
| 16 | 7112P045-60 | Clip, Wire | 01 |
|
- | ||||
| 17 | 4005J137 | Cover, Door Lock | 01 |
|
- | ||||
| 18 | 4005F174-80 | Cover, Module | 01 |
|
- | ||||
| 18 | 4005F175-51 | Cover, Ov Valve | 01 |
|
- | ||||
| 19 | 4005F139 | Cover Switch Lock | 01 |
|
- | ||||
| 20 | 0384227 | Drawer Assy. | 01 |
|
- | ||||
| 21 | 8002E009 | Catch, Door Lock | 01 |
|
- | ||||
| 22 | 7427P002-60 | Fan Assembly | 01 |
|
- | ||||
| 23 | 2201F025-23 | Front, Frame Oven | 01 |
|
- | ||||
| 24 | 7706P056-60 | Frame, Serv Door | 01 |
|
- | ||||
| 25 | 4012F013 | Frame, Burner Box Front | 01 |
|
- | ||||
| 26 | 7201P013-60 | Gasket | 01 |
|
- | ||||
| 27 | 7201P014-60 | Gasket, Housing | 01 |
|
- | ||||
| 28 | 7201P001-60 | Gasket, Oven | 01 |
|
- | ||||
| 29 | 7902P057-60 | Glass, Lamp Guard | 01 |
|
- | ||||
| 30 | 8016P004-60 | Glide, Drawer | 01 |
|
- | ||||
| 31 | 8016P005-60 | Glide, Front | 01 |
|
- | ||||
| 32 | 2003W001-00 | Grate | 01 |
|
- | ||||
| 33 | 7701P003-60 | Handle, Door Lock | 01 |
|
- | ||||
| 34 | 3418F029-34 | Hinge, Oven Door (lt) | 01 |
|
- | ||||
| 34 | 7701P019-60 | Handle, Door | 01 |
|
- | ||||
| 35 | 3418F030-34 | Hinge, Oven Door (rt) | 01 |
|
- | ||||
| 35 | 4001F036-45 | Housing, Bake Burner | 01 |
|
- | ||||
| 36 | 0537253 | Housing, Lamp | 01 |
|
- | ||||
| 36 | Y0507229 | Insert | 01 |
|
- | ||||
| 37 | 7711P173-60 | Knob, Valve | 01 |
|
- | ||||
| 38 | 8009P007-60 | Lever, Door Lock | 01 |
|
- | ||||
| 39 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 40 | 4009W034-20 | Lining, In Side | 01 |
|
- | ||||
| 41 | 7807P004-60 | Link, Switch | 01 |
|
- | ||||
| 42 | 4396923 | Pan, Broiler (Replaces: Y0663202) | 01 |
|
Immediately | $ 52.04 | |||
| 42 | 7431P006-60 | Module, Spark | 01 |
|
- | ||||
| 43 | 2614F008-20 | Panel, Lower Front | 01 |
|
- | ||||
| 43 | 2416F014-74 | Panel, Storage Draw | 01 |
|
- | ||||
| 44 | 7712A028-60 | Trim Assy, Manifold | 01 |
|
- | ||||
| 45 | 2618F052-74 | Panel, Side (alm) | 01 |
|
- | ||||
| 46 | 12001655 | Probe, Oven Sensor (Replaces: 7430P004-60) | 17 |
|
Immediately | $ 41.01 | |||
| 46 | 12001655 | Probe, Oven Sensor (Replaces: 7430P001-60) | 01 |
|
Immediately | $ 41.01 | |||
| 46 | 7113P002-60 | Pin, Hinge | 01 |
|
$ 9.05 | ||||
| 47 | 7801P011-60 | Rack, Oven | 01 |
|
- | ||||
| 48 | 7408P002-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 49 | 0749227 | Retainer, Lampguard | 01 |
|
- | ||||
| 50 | Y0766215 | Runner | 01 |
|
- | ||||
| 51 | 3406J007 | Runner, Outer | 01 |
|
- | ||||
| 52 | 1986347 | Screw, Leveling | 01 |
|
- | ||||
| 53 | Y0787421 | Shield | 01 |
|
- | ||||
| 54 | 3604F085-51 | Shield, Manifold Cov | 01 |
|
- | ||||
| 55 | 3604F083-45 | Shield, Svc Drawer | 01 |
|
- | ||||
| 55 | 7214P004-60 | Sleeve, Heat Shrink | 01 |
|
- | ||||
| 56 | 0115101 | Stop, Main Top | 01 |
|
- | ||||
| 56 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 01 |
|
$ 16.55 | ||||
| 57 | 3807F195 | Support, Latch | 01 |
|
- | ||||
| 58 | 3807F193 | Support, Door Lock Switch | 01 |
|
- | ||||
| 59 | 3807F221-80 | Support, Top Burner | 01 |
|
- | ||||
| 60 | 3807F216-45 | Support, Valve | 01 |
|
- | ||||
| 61 | WP7403P190-60 | Switch, Top Burner (Replaces: 7403P041-60) | 01 |
|
$ 118.82 | ||||
| 61 | 7403P077-60 | Switch----na | 01 |
|
- | ||||
| 62 | 7403P091-60 | Switch, Thermal | 01 |
|
- | ||||
| 63 | 7712A028-60 | Trim Assy, Manifold | 01 |
|
- | ||||
| 63 | 2001F035-94 | Top, Main | 01 |
|
- | ||||
| 64 | 7402P014-60 | Cord, Power | 01 |
|
- | ||||
| 64 | 8026P006-60 | Tube, Air | 01 |
|
- |
