Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP3400888 Screw   (Replaces: 21002224) 10 Special Order $ 6.26

2 21001960 Switch, Speed (4 Pos) 10 Special Order $ 79.89

3 31001443 Switch, Two Pos (on/off)rotary 10 Appelez-nous -
4 21001226 Switch, Water Temp. 4 Position 10 Appelez-nous -
5 Y2201474 Switch, Pressure 10 Special Order $ 80.15

6 21002223 Shield, Back Guard, Console 10 Appelez-nous -
7 21001959 Timer 10 Special Order $ 192.72

8 WP90767 Screw   (Replaces: 25-3092) 10 In-Stock Immediately $ 7.04

9 21001523 Endcap (wht-rt) 10 Appelez-nous -
10 WP90767 Screw, Abno.8-18x3/8 Hxws   (Replaces: 31001721) 10 In-Stock Immediately $ 7.04

11 WP90767 Screw   (Replaces: 25-3092) 10 In-Stock Immediately $ 7.04

12 21002067 Shield, Control (3 Hole) 10 Appelez-nous -
13 21001517 Shield, Control (1 Pos.) 10 Special Order $ 4.83

14 53-1639 Buzzer Assy. 10 Appelez-nous -
15 21002080 Switch, Rocker 10 Special Order $ 29.51

16 21001984 Skirt, Timer Knob 10 Special Order $ 5.65

17 21001985 Knob, Timer (gray) 10 Special Order $ 25.36

18 WP21002070 Knob, Selector   (Replaces: 21002070) 10 Special Order $ 20.10

19 21001519 Endcap (wht-lt) 10 Appelez-nous -
20 21001965 Frame, Control Panel, Support 10 Appelez-nous -
21 21002136 Facia 10 Appelez-nous -
22 35-2846 Hinge, Cabinet Top 10 Special Order $ 22.94

23 WP681414 Screw   (Replaces: 25-7732) 10 In-Stock Immediately $ 7.07

24 35-4128 Pad, Hinge 10 Appelez-nous -
25 21001760 Flume Assembly /water Diverter 10 Special Order $ 5.84

26 WP25-7893 Screw   (Replaces: 25-7893) 10 Special Order $ 7.14

27 21001602 Top, Cabinet (wht) 10 Special Order $ 126.54

28 21001134 Lever, Lid Switch 10 Special Order $ 26.85

29 WP90767 Screw   (Replaces: 25-3092) 10 In-Stock Immediately $ 7.04

30 31001560 Washer, Roller 10 Appelez-nous -
31 21001857 Clip, Plastic Snap-in 10 Special Order $ 5.84

32 WP90767 Screw, Abno.8-18x3/8 Hxws   (Replaces: 31001721) 10 In-Stock Immediately $ 7.04

33 21001597 Dispenser, Bleach 10 Appelez-nous -
34 25-7438 Screw 10 Appelez-nous -
35 WP90767 Screw, Abno.8-18x3/8 Hxws   (Replaces: 31001721) 10 In-Stock Immediately $ 7.04

36 WP21001135 Housing, Lid Switch   (Replaces: 21001135) 10 Special Order $ 4.03

37 WP3400872 Screw, Switch/housing   (Replaces: 21001136) 10 Special Order $ 6.95

38 WP43-0057 Actuator, Door Switch   (Replaces: 43-0057) 10 Special Order $ 73.22

39 25-7430 Clip, Wiring Harness 10 Appelez-nous -
40 WP35-2045 Pin, Hinge   (Replaces: 35-2045) 10 In-Stock Immediately $ 18.03

41 12002749 Hose, Flume Kit 27 Special Order $ 25.97

41 12002749 Hose, Flume/diverter (rubber)   (Replaces: 35-2378) 10 Special Order $ 25.97

42 35-0581 Bumper, Door (lid) 10 Appelez-nous -
43 35-2026 Lid (wht) (door) 10 Special Order $ 168.05

44 WP90767 Screw, Abno.8-18x3/8 Hxws   (Replaces: 31001721) 10 In-Stock Immediately $ 7.04

45 WP21001932 Valve, Water (60/40) Inlet   (Replaces: 21001932) 10 In-Stock Immediately $ 177.71

46 WP35-2044 Hinge, Lid   (Replaces: 35-2044) 10 In-Stock Immediately $ 7.52

47 WP25-7893 Screw   (Replaces: 25-7893) 10 Special Order $ 7.14

48 21001148 Switch, Lid/door Safety Spin 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

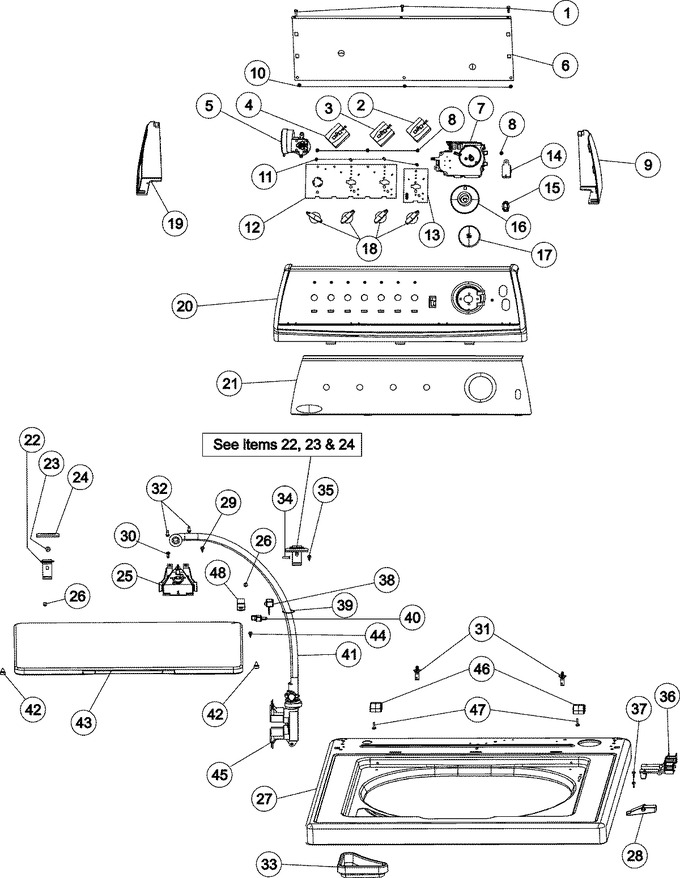

Diagram for MAV385SAWW
