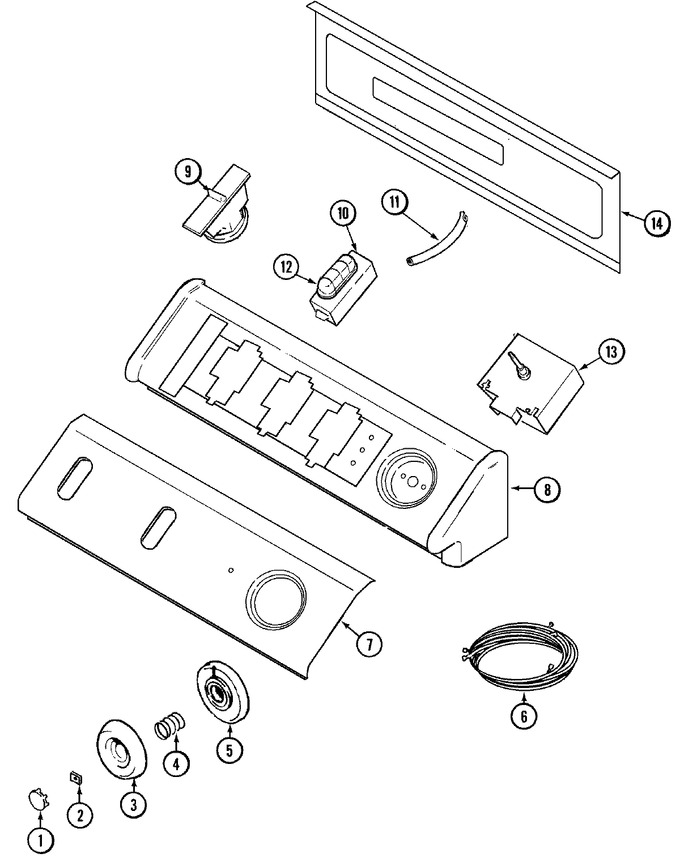

01 - Base
02 - Cabinet (prior Ser Pre 18)
03 - Cabinet (ser Pre 18 & After)
04 - Control Panel
05 - Top
06 - Transmission
07 - Tub
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001664 | Timer Knob Insert/cap (wht) (Replaces: 22001664) | 10 |
|
$ 7.85 | ||||
| 2 | 22002997 | Pin, Locking | 18 |
|
- | ||||
| 2 | 211605 | Retainer, Timer Knob | 10 |
|
- | ||||
| 3 | 22002996 | Knob, Timer (gry) | 18 |
|
- | ||||
| 3 | WP22001659 | Timer Knob - Grey (Replaces: 22001659) | 10 |
|
$ 26.38 | ||||
| 4 | W10124350 | Not Required Part Or See Note | 18 |
|
- | ||||
| 4 | 211065 | Spring, Timer Knob | 10 |
|
$ 5.70 | ||||
| 5 | 22001660 | Dial Skirt - White | 10 |
|
$ 21.47 | ||||
| 5 | 22002995 | Skirt, Timer Knob (wht) | 18 |
|
- | ||||
| 6 | 22002727 | Wire Harness | 10 |
|
- | ||||
| 6 | 22003423 | Harness, Wire | 18 |
|
- | ||||
| 7 | 22002948 | Panel, Control | 10 |
|
- | ||||
| 8 | 33002286 | Console (wht) | 10 |
|
- | ||||
| 9 | 22002706 | Switch, Pressure | 10 |
|
$ 75.69 | ||||
| 9 | 22003461 | Pad, Pressure Switch | 14 |
|
- | ||||
| 10 | 22002714 | Switch, Temperature | 10 |
|
- | ||||
| 11 | 22002743 | Tube, Water Level Switch | 10 |
|
- | ||||
| 11 | 22003422 | Hose, Air Dome | 14 |
|
- | ||||
| 11 | 22003237 | Air Dome Hose | 12 |
|
- | ||||
| 12 | 22001788 | Button, Switch (wht-end) | 10 |
|
- | ||||
| 12 | 22001789 | Button, Switch (wht-mdl) | 10 |
|
- | ||||
| 13 | 22002715 | Timer | 10 |
|
$ 189.71 | ||||
| 13 | WP3400094 | Screw, Timer (Replaces: 22001661) | 10 |
|
$ 7.14 | ||||
| 14 | 22002529 | Console Back Panel | 10 |
|
- | ||||
| 15 | 22002955 | Manual, Use & Care (french) | 10 |
|
- | ||||
| 15 | 22002951 | Manual, Use & Care | 10 |
|
- |
