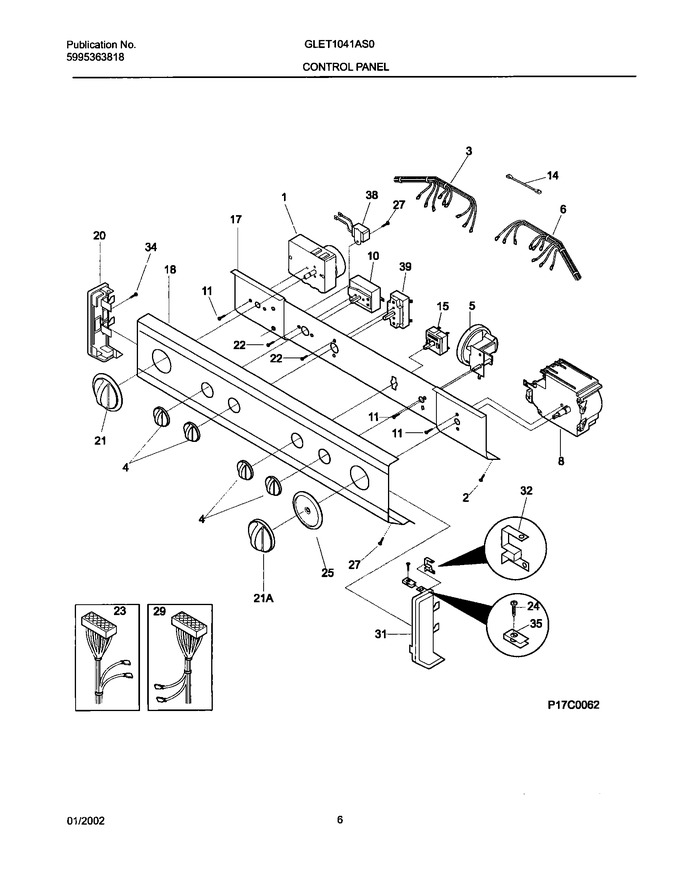

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131719100		Timer-dryer			Immediately	$ 269.37
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131662700		Harness-ctrl				$ 228.64
4	134844470		Knob-rotary-wht L/c   (Replaces: 134034950)			Immediately	$ 66.92
6	131998700		Harn-wshr-cont-w/temp Sw/w/ms				$ 192.41
8	134049600		Timer Elec S Mallory Delta				$ 360.19
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
17	131975610		Brkt-cont Mtg Weld-turn/start		Appelez-nous	-
18	134108300		Trimplate		Appelez-nous	-
20	131288101		End Cap,white ,lh				$ 53.02
21	134043000		Knob Asmy-lc Dryer Wht/dk Gry			Immediately	$ 59.54
22	3161259		Screw-switch, 6-32 X .19-2a, (2)				$ 6.83
23	131753200		Harness-dryer Main		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131976804		Pointer-wht/drk Gray-ind Lc G1				$ 36.33
27	131892100		Scr 6-20x.230 Pph B Pt		Appelez-nous	-
29	131778800		Harn-lwr Wshr		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
38	5303286537		Buzzer				$ 93.61
39	131753000		Switch-dryer Temp 4 Pos Rot		Appelez-nous	-
21A	134043200		Knob-timer-lc Wshrdelta Wht			Immediately	$ 49.62
F10	134399700		Switch-start   (Replaces: 131447500)			Immediately	$ 83.77
F15	131621100		Switch-water Temp		Appelez-nous	-
F5	134493500		Switch-pressure   (Replaces: 131692200)				$ 248.69
NI	5304464772		Strap   (Replaces: 5303161300)				$ 10.63
