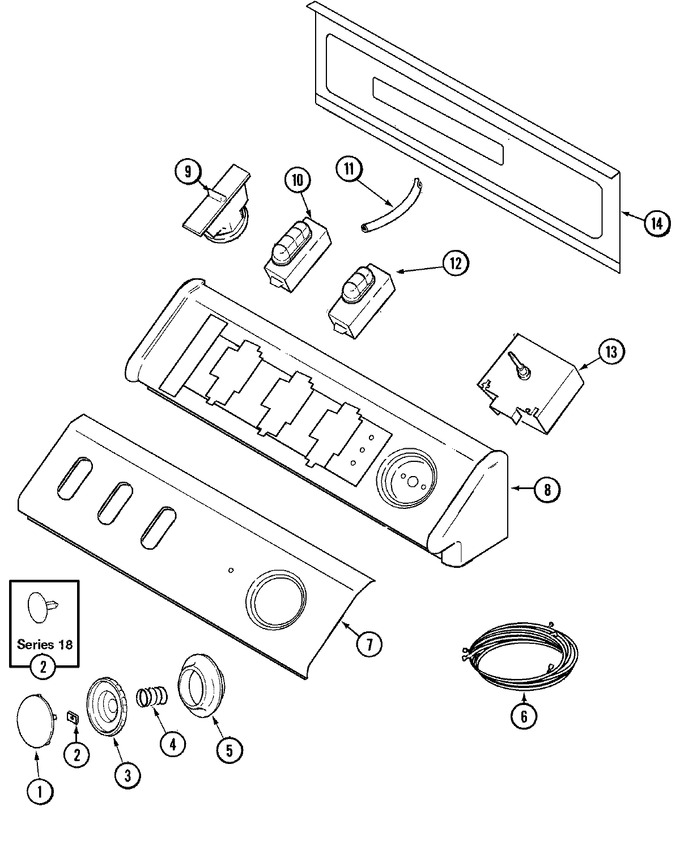

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP22001664		Timer Knob Insert/cap (wht)   (Replaces: 22001664)	10			$ 7.85
2	211605		Retainer, Timer Knob	10	Appelez-nous	-
2	22002997		Pin, Locking	18	Appelez-nous	-
3	22002996		Knob, Timer (gry)	18	Appelez-nous	-
3	WP22001659		Timer Knob - Grey   (Replaces: 22001659)	10			$ 26.38
4	W10124350		Not Required Part Or See Note	18	Appelez-nous	-
4	211065		Spring, Timer Knob	10			$ 5.70
5	22002995		Skirt, Timer Knob (wht)	18	Appelez-nous	-
5	22001660		Dial Skirt - White	10			$ 21.47
6	22003381		Harness, Main	18	Appelez-nous	-
6	22002819		Wire Harness	10	Appelez-nous	-
7	22003317		Panel, Control	10	Appelez-nous	-
8	33002286		Console (wht)	10	Appelez-nous	-
9	22002706		Switch, Pressure	10			$ 75.69
9	22003461		Pad, Pressure Switch	10	Appelez-nous	-
10	22001788		Button, Switch (wht-end)	10	Appelez-nous	-
10	22001789		Button, Switch (wht-mdl)	10	Appelez-nous	-
10	22002714		Switch, Temperature	10	Appelez-nous	-
10	22002999		Switch (4 Button Temp) (wht)	18			$ 188.97
11	22003422		Hose, Air Dome	10	Appelez-nous	-
12	22002821		Switch, Option (wht)	10	Appelez-nous	-
12	22001789		Button, Switch (wht-mdl)	10	Appelez-nous	-
12	22001788		Button, Switch (wht-end)	10	Appelez-nous	-
12	22003387		Three Button Option Switch-wht	18	Appelez-nous	-
13	Y22002339		Screw	10	Appelez-nous	-
13	22003371		Timer Rpr	10			$ 191.05
14	22002529		Console Back Panel	10	Appelez-nous	-
14	22002782		Pad, Foam (sound Dampener)	10			$ 5.53
15	22002750		Manual, Use & Care	10	Appelez-nous	-
15	16009485		Manual, Service-no Refund	10	Appelez-nous	-
15	22003861		User Guide	18	Appelez-nous	-
15	22002749		Manual, Use & Care (french)	10	Appelez-nous	-
